Bugzilla – Bug 13146
(re)design alarm clock app for squeezeplay
Last modified: 2009-10-05 14:35:41 UTC
special focus on baby and alarm button. Involves new time-entry widget.
*** Bug 9013 has been marked as a duplicate of this bug. ***
Can we refer to this widget in a more generic sense, i.e. Multi-character entry. The same widget can be used for several areas on the ui beyone time...
This is a time-tracking bug for me/us to deliver a good design for the alarm clock. Not just the text entry, but the menus and functionality (snooze, multiple alarms etc). For a more generalized widget for time entry (and other things), we should create/track a separate bug.
*** Bug 11808 has been marked as a duplicate of this bug. ***
*** Bug 12944 has been marked as a duplicate of this bug. ***
Reassessed basic menus, won't recommend any major changes for 7.4. Noah is doing most of the heavy lifting on the alarm-setting widget in terms of design. Latest reference screens look good, assuming Tom and/or Ben can build it to spec. 8hrs burned.
I'm going to pull this bug into my pile and work on the raw implementation. Advance notice, there are going to be constraints to what we can deliver with this from the UI. The items in a time input will use the existing resources we have for Menus and items within Menus. What we can do: 1. restyle the "unselected" columns dynamically 2. have the middle-of-the-screen item always be the one selected 3. do a continuous roll of menu items top-to-bottom (that is, where 12 ends in the hour column, a 1 will show up beneath it. What we can't do: 1. top-to-bottom fade effect 2. varying heights of menu items these constraints are imposed by schedule.
additional UI constraint for 7.4: 5 total items in the menu only on all skins, middle item selected.
Lets not forget about 24h mode
== Auto-comment from SVN commit #7088 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=7088 == Bug: 13146 Description: Time input now works, including SC alarms requires an SC update so alarm set action pops back to the correct window
== Auto-comment from SVN commit #28188 to the slim repo by bklaas == == https://svn.slimdevices.com/slim?view=revision&revision=28188 == Bug: 13146 Description: companion checkin to jive r7088, pop back to correct window after alarm set/update
Added CAT2 keyword.
== Auto-comment from SVN commit #28298 to the slim repo by bklaas == == https://svn.slimdevices.com/slim?view=revision&revision=28298 == Bug: 13146 Description: use a fairly typical default of 7am for the alarm clock, not midnight
== Auto-comment from SVN commit #7272 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=7272 == Bug: 13146 Description: make alarms set between 12:00am and 12:59am work properly
== Auto-comment from SVN commit #28326 to the slim repo by bklaas == == https://svn.slimdevices.com/slim?view=revision&revision=28326 == Bug: 12800 Bug: 13146 Description: support for alarm_state flag in playerstatus response to Squeezeplay three potential states right now: 'active', 'set', and 'none' may still add something in that key/val pair for snooze
== Auto-comment from SVN commit #7308 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=7308 == Bug: 12800 Bug: 13146 Description: remove playerAlarmSet notification in favor of playerAlarmState change getAlarmSet method to getAlarmState method (these are API changes but I feel confident that no one is using them yet; getAlarmState is more appropriate for what is needed) change clock applet to support new notification method alarm icon on clock will show unless the alarmState is nil
== Auto-comment from SVN commit #7312 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=7312 == Bug: 13146 Fixed Bug: 13750 Bug: 12625 Description: go with pencil line bottom edge on QVGA skin menu items; this is to assist the UI for the "pagination compromise" most of the UI skin framework for the timeinput widget on both QVGA skins uppercase AM and PM throughout ampm methods and in UI
== Auto-comment from SVN commit #7317 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=7317 == Bug: 13146 Description: final 7.4 UI treatment for setting alarm clock still need to add 24h clock support
== Auto-comment from SVN commit #28347 to the slim repo by bklaas == == https://svn.slimdevices.com/slim?view=revision&revision=28347 == Bug: 13146 Description: send localized title text 'Add Alarm' in inputSpec for adding alarm
== Auto-comment from SVN commit #7324 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=7324 == Fixed Bug: 13146 Description: Full support for setting alarm clock using 24h clock in QVGA skins Snooze support has a separate bug, so this one can close.
FYI, Bug 13768 has been opened to track time input on fab4.

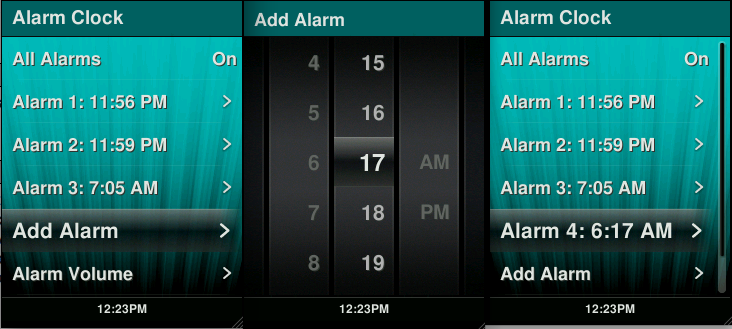

Created attachment 5749 [details] setting an alarm flow, controller, 12h
Created attachment 5750 [details] setting an alarm flow, controller, 24h

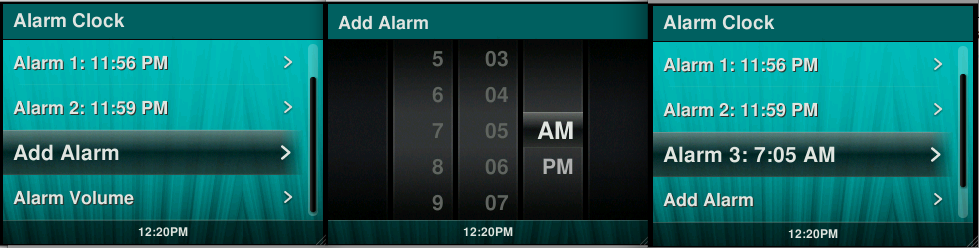

Created attachment 5751 [details] setting an alarm flow, baby, 12h

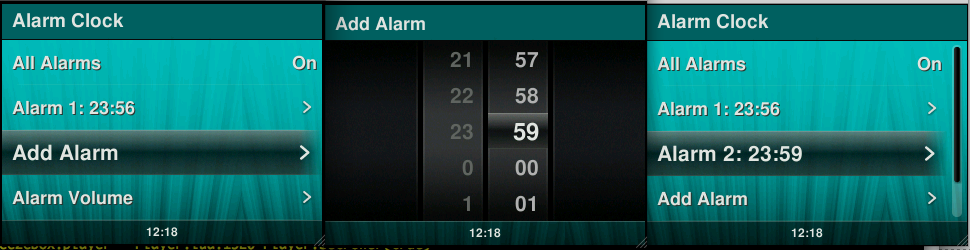

Created attachment 5752 [details] setting an alarm flow, baby, 24h
This bug has been marked as fixed in the 7.4.0 release version of SqueezeBox Server! * SqueezeCenter: 28672 * Squeezebox 2 and 3: 130 * Transporter: 80 * Receiver: 65 * Boom: 50 * Controller: 7790 * Radio: 7790 Please see the Release Notes for all the details: http://wiki.slimdevices.com/index.php/Release_Notes If you haven't already, please download and install the new version from http://www.logitechsqueezebox.com/support/download-squeezebox-server.html If you are still experiencing this problem, feel free to reopen the bug with your new comments and we'll have another look.
