Bugzilla – Bug 16881
Sync is less tolerant of network or server interruptions in 7.5.3 - r31792
Last modified: 2011-03-13 08:48:09 UTC
Created attachment 7105 [details] Logfile with sync-info attached When I sync either my boom or my second receiver with my other receiver the sync-slave stops after some minutes of synchronisation. I have attached a logfile with information.
Addtional info: All players is wired. This is the radioprogram I am syncing: http://www.dr.dk/netradio/Metafiler/asx/dr_p3_128.asx
More info: Even though the slave-synced-player is not playing they are still sync'ed. If I pause either one of them then both are paused and so on.
I'm not quite sure why one player goes silent but it appears that you have something odd going on with your server clock. 1. The large number of 'adjust jiffies epoch' log messages with quite large values (> 10ms) suggests that your server clock is not running at a smooth speed that reflects real time. 2. The set of adjust jiffies epoch messages at 08:23:33 of around +1296622298s (41.1 years) suggests that a large clock adjustment was made (setting system time properly from its default startup value of 01 Jan 1970?). This probably confused things. Sync will only work if the server clock is stable and runs at real time speed.
I can see in the eventlog of the server that for the past few days, the server has had some trouble with connecting to a time server.It says that it hasn't had any contact with a timeserver for 86400 sec or 24 hours. Don't know why it suddenly has this problem. Could this also affect the alarmclock?
yes
Okay. Thanks. That explains why we didn't get up today in time :) I will close this bug.
Created attachment 7161 [details] Logfile with new sync-info
This still happens. And I am sure that the servers time is correct.
Created attachment 7162 [details] Synclog from 2.18.2011 This is more of the same. The sync'ing is going fine for several hours and then suddenly the slave stops and is completely dead until it is turned off.
I am having similar issues since the last update was installed. This is causing major issues, since this is also affecting our rooster alarm clock. We have 2 duet receivers synchronized permanently on a wired network. Yesterday, synchronization failed and sound dropped from one of the receivers while streaming some web content. I removed synchronization, synchronized again and streamed/listened to music all day. This morning, the alarm clock didn't go on. Attempting to stream our usual web source also failed to produce any sound. The fix was to remove synchronization and synchronize again. Nothing special is showing in the log.
Created attachment 7168 [details] Logfile from 7.5.2 I downgraded to 7.5.2 because I was tired of the sync doesn't work in 7.5.3. As you can see there are still some logentries where one of the players says it is bailing, but in 7.5.2 the players stays synced and just continues as nothing happened. So something is wrong in 7.5.3!!
Is there any chance that this will be looked at soon? My wimp app stopped working when I downgraded.
Kurt, if you could add player.source=info and networking.slimproto=info to your logging then that might help see what is happening. Either your 7.5.2 or 7.5.3 installation would probably do.
Okay. I have set up on my 7.5.2 installation I am using for now. For how long do you want it to run?
Created attachment 7169 [details] Logfile with sync-info and info from player.source and network.slimproto Here is the new logfile as requested.
Kurt, I am pretty sure that I see what is going on. In the various logs we see evidence that, from time to time, there is some sort of short-term disruption in the network connectivity between your players and your server. The status packets that should arrive from each playing player every second dry up for a while, and then come all at once. It is clear from the data in the burst of packets that they are the ones that should have come every second. The change in the player firmware in 7.5.3 makes the player disconnect after 10s of not receiving anything. This replaces a different keep-alive mechanism which, evidently, was more tolerant of network interruptions. Also, the other keep-alive mechanism in place in SbS has an effective timeout of 15-20s. After such a disconnect, whether initiated by the player or SbS, the player will try to reconnect automatically. The code in SbS that handles reconnection of players while playing will not restart playback for a player in a sync-group if another player was still considered connected when it disconnected. Obviously, if you could solve the problem that causes the network interruptions, then that would be ideal. I will see if we can do something about restarting reconnecting synced players.
Andy, I think you should increase the firmware timeout to at least 20s for the SbS case. Probably best to use the same value as for the SN case.
Created attachment 7170 [details] Possible patch This patch would improve matters some of the time. In the case that a single player in a sync-group disconnects and reconnects, then it will restart playback for the sync-group. If an output underrun occurs while the network is blocked, and the player had disconnected already, then it is likely that the player will enter the paused state but the server will not be notified of the underrun and will never unpause the player. SP-based players do not suffer from this problem (from 7.6) because they resent status packets that were dropped.
There is a 5s cushion for the firmware timeout. SBS sends a stat packet every 5s, the firmware will disconnect after 10s of inactivity. I think this is pretty fair, if your LAN is this slow, sync is probably the least of your problems.
I just thought it would be a good idea for me to write some news about my install. The first week after the update to 7.5.3 was horrible, with multiple failures of the sync. I am not sure if this is related or not, but this is around the time when I re-wired my entire network, adding a patch panel and patch cables. Reading the symptoms below, I tend to think this could be the root cause. I did reboot the server since and the sync problems seem to be gone now. Regardless, the receivers should be more fault resistant to the network going down. It may happen when a router is rebooted, etc.
Actually they are *more* tolerant than before. Previously they would disconnect within 2 seconds (by using an extremely low TCP keep-alive threshold), now it's 10.
I must admit that I don't have any idea how to solve this problem. Every player I have is connected with wire. After I installed 7.5.3 and the problems began I restarted the server, my switch and the router from my ISP, but that didn't help. So I have absolutely no clue on how to solve this. The only difference there is between my 7.5.2 and 7.5.3 installation was I had a wimp account set up for 7.5.3. Obviously that can't cause any problems for 7.5.2 since it is not in use.
Do you have any symptoms of a poor network? It should be pretty obvious on Boom. How is the response time when you use the remote or front panel?
Well the only thing I have noticed is that my old SB3 sometimes shows that it has lost connection with the server. It is only for a few seconds and then it is gone. But after I have switched back to 7.5.2 that too has gone. My boom works like it should, although I did have a problem with the alarm clock on 7.5.3 one morning. But again that went away when I downgraded.
And no. My Boom is as responsive as ever.
How do you apply the patch you have attached?
Created attachment 7179 [details] Log file before/after un-sync occured. 2 players were synchronized when the slave failed. Quickly after, I had to un-sync and re-sync to get the slave zone to play again.
Comment on attachment 7179 [details] Log file before/after un-sync occured. Hi. I need to come back on what I wrote in comment 20. Synchronization failed multiple times since then. Typically, our "slave" zone stops playing while master continues. Both zones are receivers on firmware version 67. My network is wired and both zones are on 2 different gigabit switches. Adding attachment "Un-sync log - sle118 11-03-02.txt" I just activated additional log info as suggested in comment 13. Thank you
Can anyone with this problem please provide the following? System specs (platform/cpu speed) List of 3rd party plugins in use
Created attachment 7180 [details] Screenshot of plugins My server is a Fujitsu Scaleo Intel Celeron CPU 420 1,6 GHz with 2 GB RAM. I have attached a screenshot of plugins in use. Hope it helps.
Try disabling all 3rd party plugins, some of the ones you are using might be poorly written and could cause this problem.
Created attachment 7182 [details] Logfile from 2.3.2011 with some plugins disabled I have diasbled Dynamic Playlists, Playlist Manager and SQL Playlists and this is the logfile after 2 hours of playing. Only one bailing logged
sle118@hotmail.com: If you look at my plugins do you have the same plugins installed?
So would you say one or more of those plugins was the problem?
it is difficult to say. In the last logfile there is only one bailing-message, but the one there is, have two Checksync messages before it with 3 seconds between them. So there is still a problem. I think it is a problem that SBS suddenly can't work with plugins that have been around for several years. I have had these installed for a long time without any problems before now. I will try to test some more today.
== Auto-comment from SVN commit #31979 to the slim repo by ayoung == == http://svn.slimdevices.com/slim?view=revision&revision=31979 == bug 16881: Sync is less tolerant of network interruptions in 7.5.3 - r31792 Ensure that reconnecting players, with the reconnect bit set, are made active (if powered on). For synced players, this will mean that the stream is restarted when the player reconnects.
(In reply to comment #33) > sle118@hotmail.com: If you look at my plugins do you have the same plugins > installed? I will attach my own list. I have very few third party plugins activated. Most are from Logitech, and none of the third party match yours.
Created attachment 7184 [details] Log File with Slimproto and StreamingController active The slave receiver stopped playing at around 18:35 in the log.

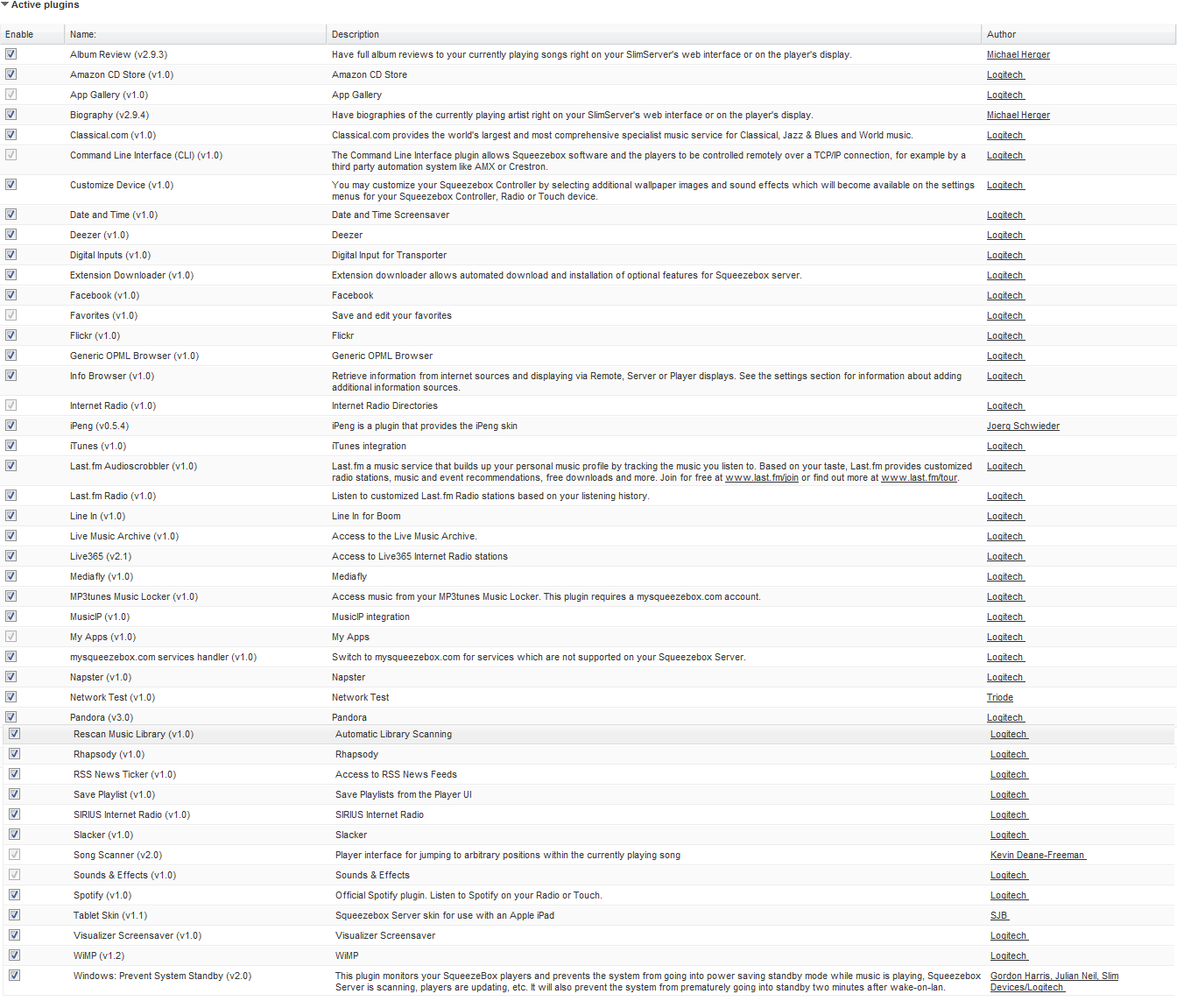

Created attachment 7185 [details] Active plugins Here is a list of active plugins. Few are third party, and no recent change was made to that list. After taking that snapshot, I noticed that the Album Review Plugin has an update and I installed it. I will see if this makes any difference.

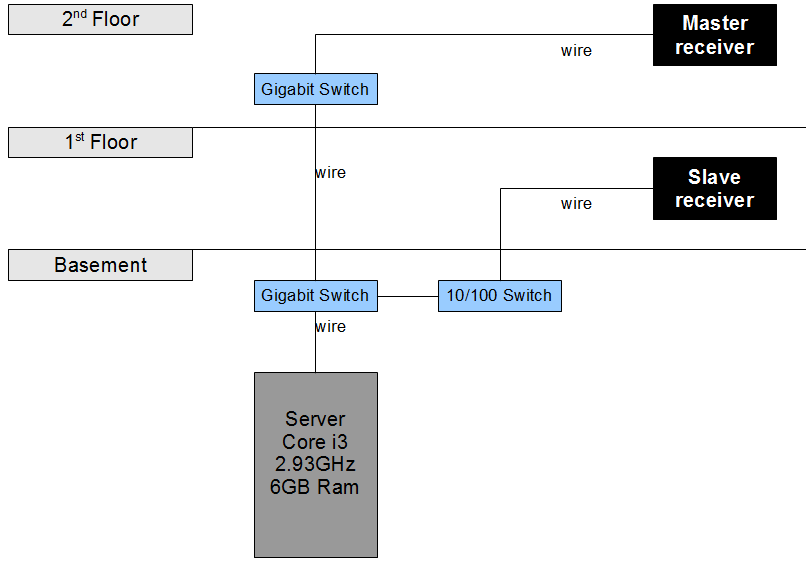

Created attachment 7186 [details] Network setup (In reply to comment #29) > Can anyone with this problem please provide the following? > > System specs (platform/cpu speed) > List of 3rd party plugins in use List of plugins attached. 3rd party are: Biography (v2.9.4) iPeng (v0.5.4) Network Test (v1.0) Song Scanner (v2.0) Tablet Skin (v1.1) Windows: Prevent System Standby (v2.0) System Specs Intel Core i3 530 @ 2.93HGz (dual core) Windows 7 Home Premium 64 bits 6GB Ram Attached is a drawing of the network setup
(In reply to comment #39) > Created an attachment (id=7185) [details] > Active plugins > > Here is a list of active plugins. Few are third party, and no recent change was > made to that list. After taking that snapshot, I noticed that the Album > Review Plugin has an update and I installed it. I will see if this makes any > difference. Actually I don't have many third party plugins either (6 or 7). And I haven't installed any new ones for a very long time. I think i have had these plugins for at least 2 years! But never the less it seems that after I have disabled Dynamic Playlists and SQL playlist it has made the system more stable. At least according to the logfile. I will try to upgrade to 7.5.3 this weekend to see if it works now. But even if it has helped I think there are a major problem i SBS if plugins that have worked for years suddenly breaks the whole SB system, because Logitech have tried to minimize network traffic. Maybe you went to far?
After updating the Album review plugin, the server was unable to connect to MySqueezeBox.com, and I could not access the server anymore. I had to save my prefs folder, uninstall 7.5.3 and reinstall completely. What a pain. Not sure if this is related to the sync issue, but I will leave this plugin disabled for now and see if the sync issue is still present after a complete reinstall.
I performed a network test on both receivers and they stayed in the greeen at up to 3000kbps
I'm on Ubuntu Linux. Same problem. No non-logitech plugins, and many out-of-the-box logictech plugins are disabled. squeezeboxserver version is 7.5.3 - r31792 @ Mon Jan 24 07:13:35 PST 2011 (4) Squeezebox Booms - firmware 52 (1) Squeezebox Radio - firmware 7.5.3-r9283
Since my upgrade to 7.5.4 my sync problems has gone away. Should I close this bug or is there anyone who wants to keep it open?
