Bugzilla – Bug 11175
Modified Letter Turned Comma character not displayed properly on controller
Last modified: 2009-08-22 09:49:01 UTC
The character: ʻ Modified Letter Turned Comma, a.k.a single open quote, unicode 02BB is not displayed properly on the Squeezebox controller. It is displayed as a rectangular box instead. Oddly, this character is displayed properly on my SB1. Media is FLAC with UTF-8 character encoding. If it helps, here is an excerpt of hexdump -C on the FLAC: 00000200 10 00 04 00 01 e2 20 00 00 00 72 65 66 65 72 65 |...... ...refere| 00000210 6e 63 65 20 6c 69 62 46 4c 41 43 20 31 2e 32 2e |nce libFLAC 1.2.| 00000220 31 20 32 30 30 37 30 39 31 37 11 00 00 00 27 00 |1 20070917....'.| 00000230 00 00 41 52 54 49 53 54 3d 44 65 6e 6e 69 73 20 |..ARTIST=Dennis | 00000240 4b 61 6d 61 68 61 6b 69 20 26 20 44 61 76 69 64 |Kamahaki & David| 00000250 20 4b 61 6d 61 6b 61 68 69 09 00 00 00 43 4f 4d | Kamakahi....COM| 00000260 50 4f 53 45 52 3d 3b 00 00 00 41 4c 42 55 4d 3d |POSER=;...ALBUM=| 00000270 48 61 77 61 69 69 61 6e 20 53 6c 61 63 6b 20 4b |Hawaiian Slack K| 00000280 65 79 20 47 75 69 74 61 72 20 4d 61 73 74 65 72 |ey Guitar Master| 00000290 73 20 43 6f 6c 6c 65 63 74 69 6f 6e 20 56 6f 6c |s Collection Vol| 000002a0 75 6d 65 20 32 0c 00 00 00 44 49 53 43 4e 55 4d |ume 2....DISCNUM| 000002b0 42 45 52 3d 31 0b 00 00 00 44 49 53 43 54 4f 54 |BER=1....DISCTOT| 000002c0 41 4c 3d 31 0b 00 00 00 47 45 4e 52 45 3d 57 6f |AL=1....GENRE=Wo| 000002d0 72 6c 64 10 00 00 00 54 49 54 4c 45 3d ca bb c5 |rld....TITLE=...| 000002e0 aa 6c 69 6c 69 20 45 0d 00 00 00 54 52 41 43 4b |.lili E....TRACK| 000002f0 4e 55 4d 42 45 52 3d 32 0d 00 00 00 54 52 41 43 |NUMBER=2....TRAC| 00000300 4b 54 4f 54 41 4c 3d 31 36 09 00 00 00 44 41 54 |KTOTAL=16....DAT| 00000310 45 3d 31 39 39 39 0d 00 00 00 43 4f 4d 50 49 4c |E=1999....COMPIL| 00000320 41 54 49 4f 4e 3d 31 08 00 00 00 43 4f 4d 4d 45 |ATION=1....COMME| 00000330 4e 54 3d 25 00 00 00 52 45 50 4c 41 59 47 41 49 |NT=%...REPLAYGAI| 00000340 4e 5f 52 45 46 45 52 45 4e 43 45 5f 4c 4f 55 44 |N_REFERENCE_LOUD| 00000350 4e 45 53 53 3d 38 39 2e 30 20 64 42 1e 00 00 00 |NESS=89.0 dB....| 00000360 52 45 50 4c 41 59 47 41 49 4e 5f 54 52 41 43 4b |REPLAYGAIN_TRACK| 00000370 5f 47 41 49 4e 3d 2d 36 2e 33 32 20 64 42 20 00 |_GAIN=-6.32 dB .| 00000380 00 00 52 45 50 4c 41 59 47 41 49 4e 5f 54 52 41 |..REPLAYGAIN_TRA| 00000390 43 4b 5f 50 45 41 4b 3d 30 2e 39 34 31 34 33 36 |CK_PEAK=0.941436| 000003a0 37 37 1e 00 00 00 52 45 50 4c 41 59 47 41 49 4e |77....REPLAYGAIN| 000003b0 5f 41 4c 42 55 4d 5f 47 41 49 4e 3d 2d 35 2e 30 |_ALBUM_GAIN=-5.0| 000003c0 35 20 64 42 20 00 00 00 52 45 50 4c 41 59 47 41 |5 dB ...REPLAYGA| 000003d0 49 4e 5f 41 4c 42 55 4d 5f 50 45 41 4b 3d 31 2e |IN_ALBUM_PEAK=1.| 000003e0 30 30 30 30 30 30 30 30 06 00 ae 28 00 00 00 03 |00000000...(....| 000003f0 00 00 00 0a 69 6d 61 67 65 2f 6a 70 65 67 00 00 |....image/jpeg..|
Can you upload a sample file for us to test with please.
Created attachment 4859 [details] FLAC test file with tags containing unicode character 02BB This is a test file with same tags as one of the FLACs exhibiting the display problems (actual file is 28M). The file was generated using: metaflac --export-tags-to=foo.meta <original file> metaflac --import-tags-from=foo.meta testcase.flac Using hexdump, I've ensured that the the test file is using the same character encoding and content as the original.
Created attachment 4861 [details] Error image Verified the attached files display the attached screen shot on SC UI, IP3K UI, SBC UI
James - don't understand. Do you confirm it's displayed correctly on web UI and player, but not Controller? I do see a "turned comma" in that screenshot. If it's a Controller only issue, then it's very likely the font which doesn't feature that particular character. I think Richard was working on an improvement of font handling.
James - could you please elaborate? I don't understand your comment.

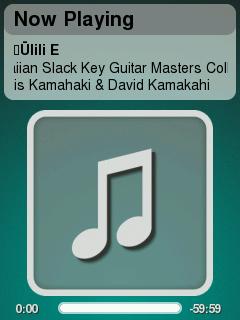

Created attachment 4871 [details] JIVE error Sorry about the confusion, attached is a screen capture from the Controller You are correct, the WEB UI and IP3K UI do not show this error
I guess this is a character our font can't display. See second part of my comment #4. Richard/Ben?
All signs point to no font support for that character in FreeSans We're exploring some other font rendering technologies, including the possibility of a "fallback" font with full unicode support, Android, when FreeSans doesn't have the correct character. I expect it will be a while before we see that in action though. I'm going to target this for future. That might not be correct, but there definitely won't be a 7.3.3 fix for this.
If this is a problem with the pre-packaged font and that is a long-term fix, would it be reasonable to add an interface to BYOF (Bring Your Own Font)? Perhaps in the same web pane as wallpaper and sounds under: Settings -> Advanced -> Customer Controller I've seen some talk of adding unicode fonts on the forums, but it seems more tedious than it should be. Having a supported way to add/replace fonts would be nicer.
*** Bug 12751 has been marked as a duplicate of this bug. ***
