Bugzilla – Bug 9086
Controller doesn't show player brightness or text size choices for players w/display
Last modified: 2009-09-08 09:14:00 UTC
Not sure that this is in the correct place, but it is the most secure so I'm putting it here. On the controller if you go to Setting, Advanced you see a "Player Brightness" option with a ">" after it. If you select this then the boom's brightness is decreased by one. There should be a sub menu where the user can see the choices and select the preferred one. Also the current pop up just shows brightness levels 6 through 0 instead of the more desriptive labels. Also doesn't have the "while on" and "While off" and "idle" sub-options, either.
The menu should match the boom ui
Created attachment 3781 [details] three brightness options as sliders a few minor issues left. It needs access to $client->maxBrightness and there are warnings on 'weight' and 'splice' when the queries are made at jive startup. hopefully the initial legwork is a small timesaver.

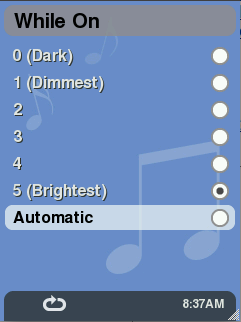

Created attachment 3784 [details] brightness settings as radio buttons hmmm...I was about 3/4 of the way into implementing these settings as radio buttons. I really like the idea of using a slider (heh, someone's actually paying attention to jiveMLON feature additions), but in Boom there's a slight problem because a brightness level of 6 on Boom is actually "automatic" rather than "maximum". If it weren't for that I'd say using a slider would be the way to go. Opinions anyone?
Dean, can you take a quick peak at the discussion here and comment?
I implemented this as radio buttons in change 22541. I'm amenable to changing this to a slider, but I think the 'automatic' setting 6 for Boom makes that probably not the right choice.
Ben: Is the PNG representative of the final UI? I'd say that the order should be reversed (Automatic, Brightest... Dimmest).
sure, I'll reverse the order... I think Player Text Size is also a needed setting on the controller UI, esp. with Boom since the included IR remote doesn't have a text size button. The wiki for the UserInterfaceHierarchy is actually screwed up in this section, as it assumes that Controller Screen/Player Display are an either/or proposition, when in fact the Controller needs both when connected to a player with a display. I propose this organization, and will have a checkin shortly for it: Settings-> ... Screen-> Brightness-> Screen Dimming-> Screensavers-> Wallpaper-> Player Display-> Brightness-> Text Size-> ... Only problem right now is I have no string for PLAYER_DISPLAY, only DISPLAY_SETTINGS (EN = "Display"). This leaves the item as being fairly ambiguous as to whether it's for the controller or a player. Not sure what to do on that point for 7.2 though.
generalizing summary to all players for clarity
change 22553 has the reversed order, a new setting for Text Size, and a new submenu Settings->Display to contain the two items. I'll post some screenshots in a bit

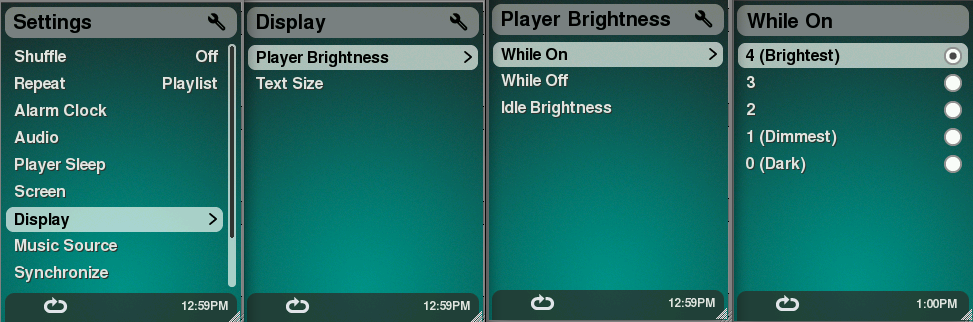

Created attachment 3790 [details] new display settings submenu and player brightness menus note: this is when connected to an SB3

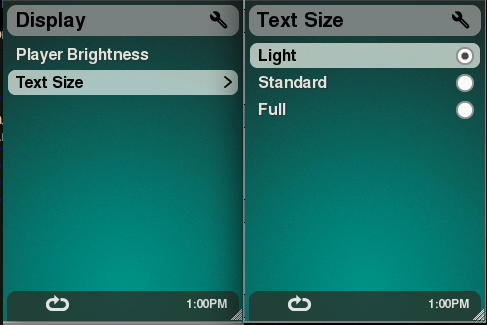

Created attachment 3791 [details] new player text size menus note: connected to SB3

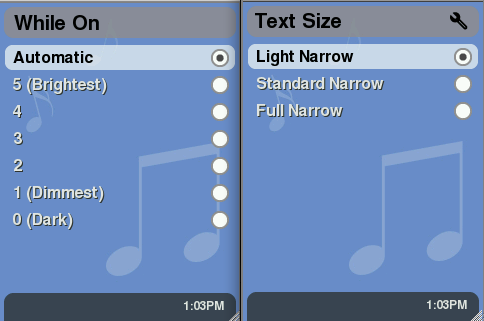

Created attachment 3792 [details] player brightness and text size settings when connected to boom
Dean, assigning to you for assessment. If this works for you, close it...
Verified fixed in SqueezeCenter 7.2-22900 Controller 7.2 2873
