Bugzilla – Bug 18150
Scanner always sets DISCNUMBER to 1 for FLAC files
Last modified: 2016-08-07 01:01:31 UTC
FLAC files with DISCNUMBER>1 are inserted into the database as having DISCNUMBER=1. MusicBee says the tags are stored in "Vorbis Comments" format, if that means anything.

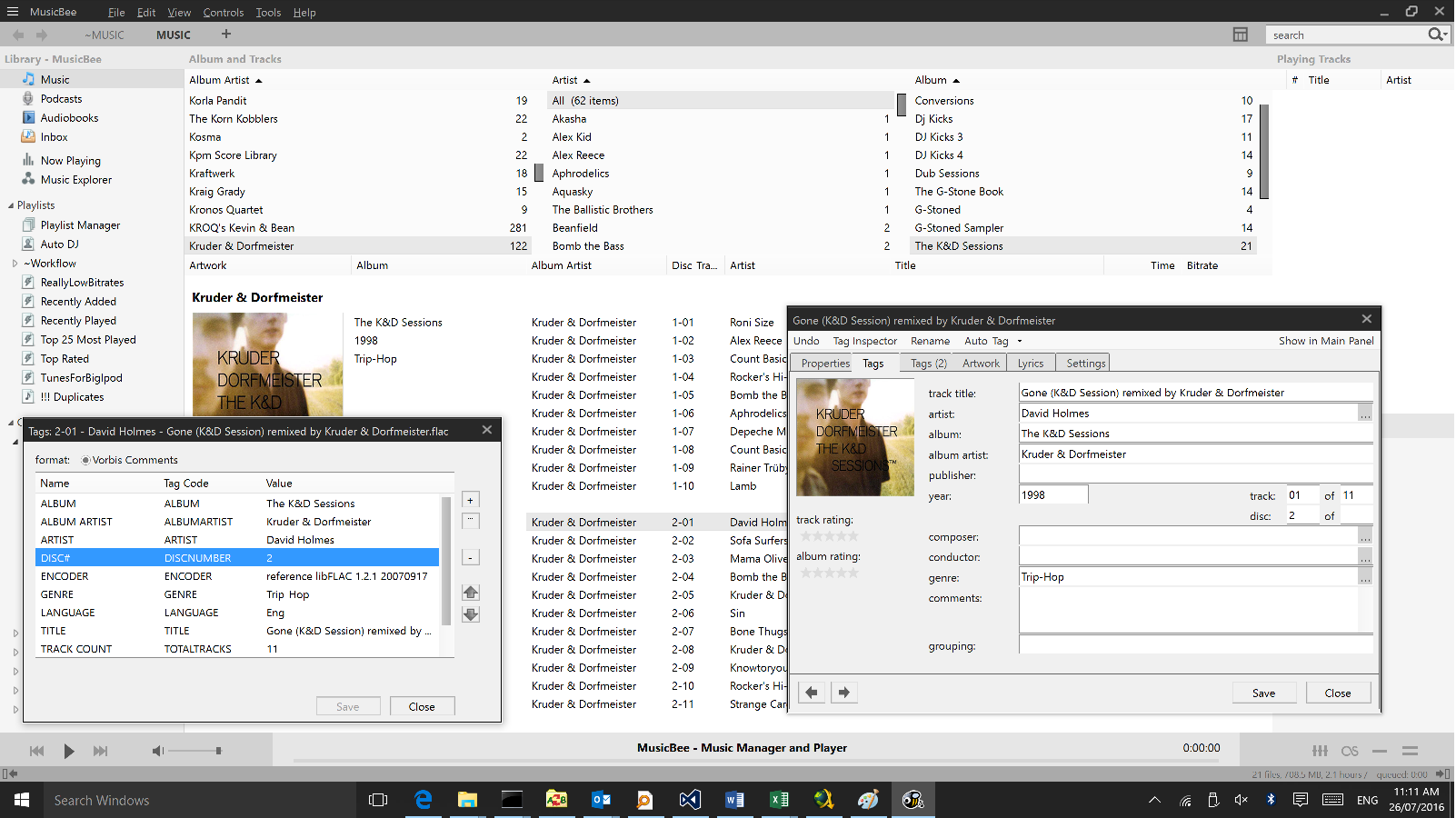

Created attachment 7751 [details] File tags as shown in MusicBee and other apps

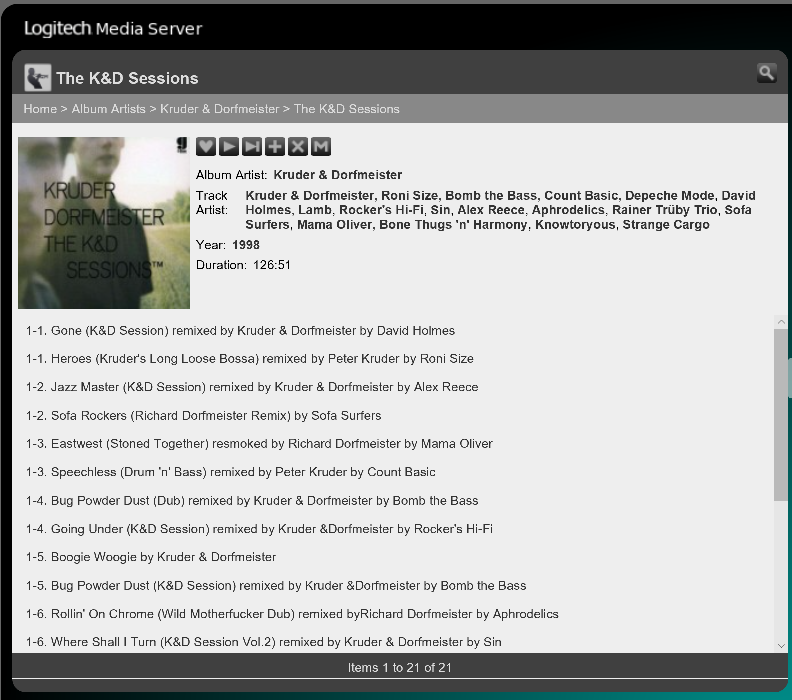

Created attachment 7752 [details] SqueezeServer view of the file tags
Created attachment 7753 [details] Scanner log from a complete wipe-and-scan

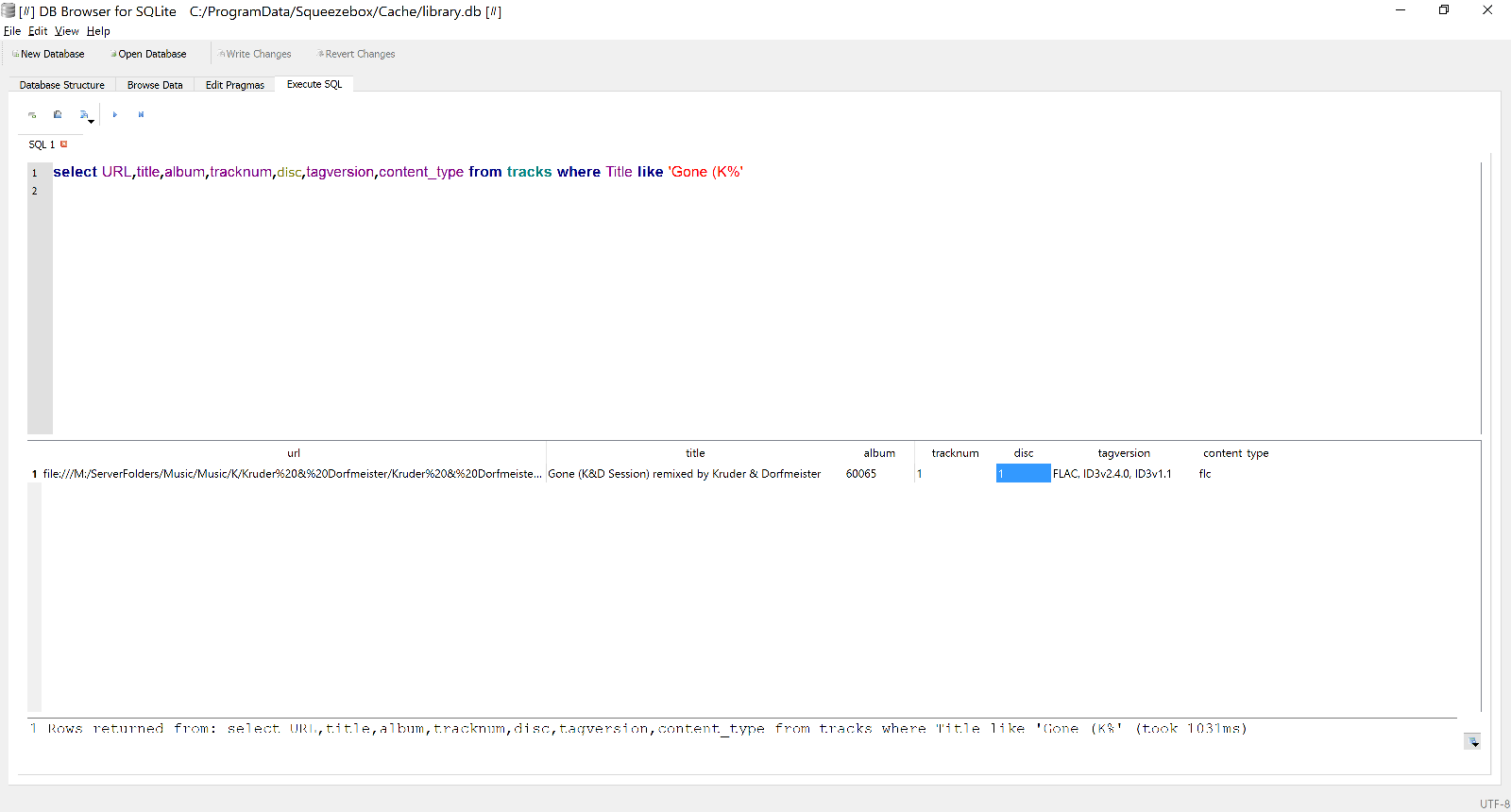

Created attachment 7754 [details] View of the file details in the LMS database
There might be a difference in how LMS handles the case where you have a DISCNUMBER value, but no DISCTOTAL (see your first screenshot). We rely on the latter, while other applications might use the highest DISCNUMBER value. But this can easily be "fixed" by setting the correct value for the total number of discs in your files.
Data issue, not code.
Thank you for the investigation and for the suggested workaround. As suggested, I set the number of discs for that album (which comes out of MusicBee as the TOTALDISCS tag, not DISCTOTAL) and tried first a scan-for-changes and then a wipe-and-rescan. However, the result was the same; the LMS database still lists DISCNUMBER as 1 for the album. One could, as you mentioned, infer a value for DISCTOTAL from the maximum DISCNUMBER field for all the tracks on a particular album, but I don't understand why the presence or absence of the DISCTOTAL field would determine the value of the DISCNUMBER field. DISCNUMBER is what it is, and should be parsed correctly regardless of whether or not the DISCTOTAL tag exists.

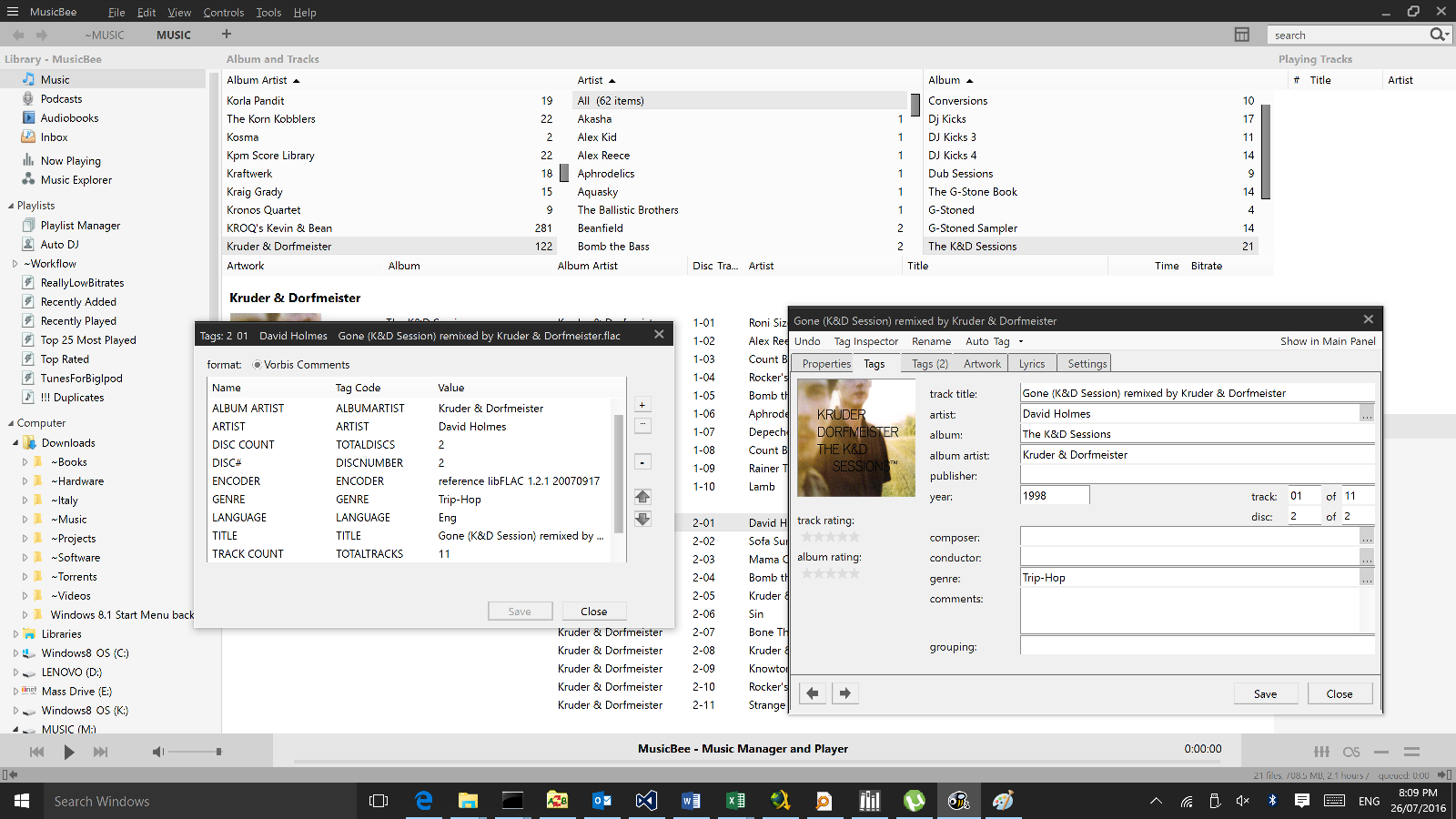

Created attachment 7755 [details] File tags after applying workaround
Created attachment 7756 [details] LMS database after workaround and rescan
Do you have both discs of this album in your library, or only disc 2? I use the exact same fields - DISCNUMBER and TOTALDISCS - for tagging multi-disc albums and I don't see this behavior in 7.9. One small tagging difference is that I don't include a TOTALTRACKS field. In the web interface of LMS, you can drill down a couple more levels and see the actual tags LMS sees for an individual track using the 'View Tags' link. You should see something like this: ALBUM: Moonflower ALBUMARTIST: Santana ALBUMARTISTSORT: Santana ALBUMSORT: Moonflower ARTIST: Santana ARTISTSORT: Santana DATE: 1977 DISCNUMBER: 2 GENRE: Rock REPLAYGAIN_ALBUM_GAIN: -5.40 dB REPLAYGAIN_ALBUM_PEAK: 0.99908447 REPLAYGAIN_TRACK_GAIN: -6.93 dB REPLAYGAIN_TRACK_PEAK: 0.98614502 TITLE: She's Not There TOTALDISCS: 2 TRACKNUMBER: 1 VENDOR: reference libFLAC 1.2.1 20070917
I have both discs of this release in the library, and the problem happens on other multi-disc FLAC sets. 'View Tags' in the LMS webUI gives the following: ALBUM: The K&D Sessions ALBUMARTIST: Kruder & Dorfmeister ALLPICTURES: [ HASH(0xaa2261c) ] APIC: [ image/jpeg, 3, CD Front Cover, 31284, 375 ] ARTIST: David Holmes DATE: 1998 DISCNUMBER: 2 ENCODER: reference libFLAC 1.2.1 20070917 GENRE: Trip-Hop LANGUAGE: Eng MCDI: b täè?ݯOéøQ·Ù ÊÚ e ]|ªáÔÿÿ TALB: The K&D Sessions (CD 2) TCON: Trip-Hop TDEN: 2011-07-30T10:15 TDRC: 1998 TENC: Exact Audio Copy (Secure mode) TIT2: Gone (K&D Session) remixed by Kruder & Dorfmeister TITLE: Gone (K&D Session) remixed by Kruder & Dorfmeister TLEN: 510133 TOTALDISCS: 2 TOTALTRACKS: 11 TPE1: David Holmes TPOS: 1/1 TRACKNUMBER: 01 TRCK: 01/11 TSSE: (353 Bytes) VENDOR: reference libFLAC 1.2.1 20070917 ...which makes it all the more puzzling why the TRACKS table of the LMS database shows the disc number as 1, when the tags view shows that it did parse and store the tag saying DISCNUMBER=2. I also don't understand why the TALB tag says "(CD 2)" since the album title doesn't contain that string in the raw tags view of MusicBee.
These are FLAC files, but it Looks like you also have field names used in ID3v2 tagging typically used in Mp3 files. I'm talking about the four-letter fields, most of them with names beginning with 'T' such as TALB (album name), TIT2 (track title), etc. If LMS's scanner is reading these rather than ignoring them, it's going to cause a lot of conflicts. In particular, these two: TALB: The K&D Sessions (CD 2) TPOS: 1/1 The album name in this tag looks like it's unique to each disc in the set, so the scanner would think each is a one disc set. But the main culprit may be TPOS, which is interpreted as "part of set" and is used in ID3v2 tagging for disc number and total discs. So this field is saying "disc 1 of 1". If you remove all of the Id3v2 fields, it should clear up the problem. From what I see, that would be: MCDI, TALB, TCON, TDEN, TDRC, TENC, TIT2, TLEN, TPE1, TPOS, TRCK, TSSE and APIC, which is an embedded cover. It looks like EAC was used to rip/encode this album. A common mistake in EAC is to add ID3 tags to FLAC files. Go to Compression Options (F11) > External Compression and uncheck 'Add ID3 tag'.
Thanks, Jim, that's done the trick! I didn't know that FLAC files could contain anything except Vorbis tags, and none of my existing library management tools showed the ID3 tags but I did a bit of googling and then used MP3Tag to delete the ID3 tags and then undo (which rewrote only the Vorbis tags). Given that ID3 tags within FLAC files are (apparently) a known problem, wouldn't it save everyone some fuss if the LMS scanner ignored ID3 tags in FLACs and only read the Vorbis tags? That seems to be the approach many other applications use.
