Bugzilla – Bug 17875
Slider in alarm volume screen not working
Last modified: 2012-03-06 05:04:30 UTC

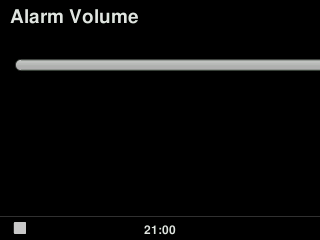

Created attachment 7612 [details] screenshot of slider in Squeezeplay 7.6 With Squeezebox Radio, firmware version 7.7.1 r9557 the slider in the screen to set default Alarm Volume shows as in the attached screenshot; the right end is complete out of the screen. This was taken from Squeezeplay 7.6, but in 7.7.1 on the Radio it is the same. It is still possible to adjust the Alarm volume, but there is no visible feedback at which level you have it set. I have traced this back to the QVGAbaseSkin applet, where the slider widget is incorrectly set, around line 776 as s.volume_slider_group = s.slider_group. This should be s.settings_volume_group = s.settings_slider_group. Still the slider looks a bit ugly, but it now shows the volume level, while the user adjusts it with the large knob. I will ad another screenshot with above corrections.

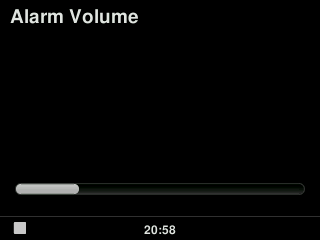

Created attachment 7613 [details] Screenshot with patched QVGAbaseSkin Screenshot with patched QVGAbaseSkin
Michael: Can you look at implementing this fix please
Your fix looks good, can you include a patch so we can implement your fix
Created attachment 7640 [details] patch for volume setting slider in Radio - QVGAbaseSkinApplet
Michael to implement
Are you sure this still is an issue? Or did you update a modified 7.6 to 7.7? In this case that particular file would not have been replaced by the update. Please run a factory reset and re-test. I'm not seeing this issue on my 7.7.1/9557 radio.
We confirmed this to be working as expected on two more devices. Feel free to re-open this bug if you still see this issue after a factory reset of your Radio.
