Bugzilla – Bug 15753
Tile:loadImage() should return nil when the file path is non readable
Last modified: 2010-04-08 17:26:38 UTC

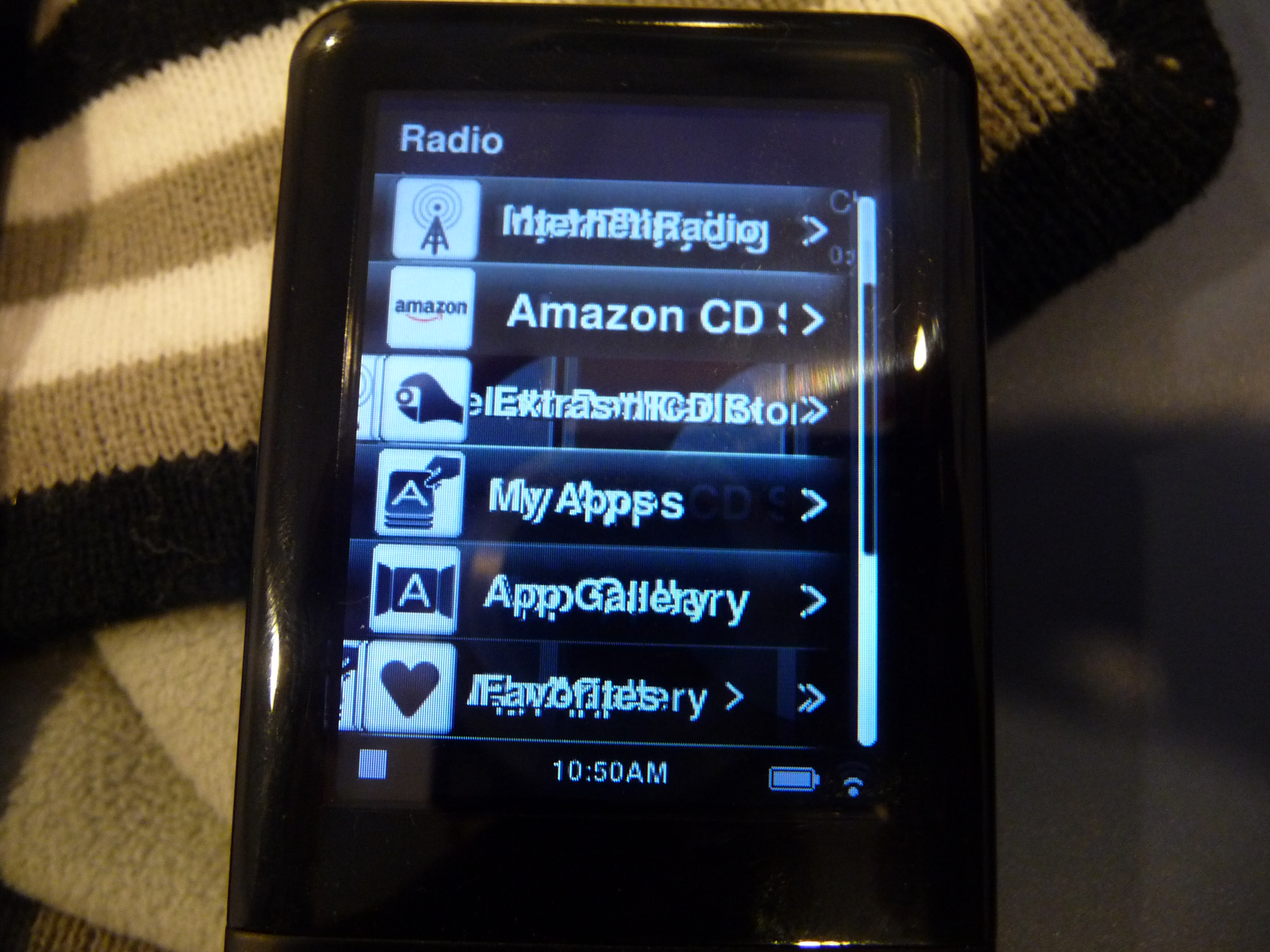

Created attachment 6548 [details] picture of controller with bad screen drawing This has been reported on the forums, seen in windows desktop squeezeplay. I've also seen it on controller. http://forums.slimdevices.com/showthread.php?t=75538 Screen draws over itself resulting in a visually broken display. Suggest that it may have something to do with recent surface and tile C changes.
Created attachment 6549 [details] movie of behavior this is a big file so don't know whether it will work, but here's a movie of it...
Created attachment 6550 [details] Zip of c:\users\username\AppData\Roaming\SqueezePlay when screen is drawn incorrectly These configuration settings cause a distorted display within Windows when running the latest SqueezePlay builds.
Created attachment 6551 [details] c:\users\username\AppData\Roaming\SqueezePlay when screen is drawn CORRECTLY. This profile was created fresh by the latest February 22nd SqueezePlay Windows build.
Specifically, it looks like SetupWallpaper.lua is the problem. The file from the old profile causes the behavior.
I've managed to get the screen on my desktop SP messed up using Mike's SetupWallpaper.lua settings file-- thanks Mike. Wow, that's interesting...not at all what I would have thought to cause this issue. I'm somewhat skeptical that it's the only way to manifest this, but it's certainly one way. error log-- 20100222 19:32:46.054 ERROR squeezeplay.ui.draw - jive_tile_load_tiles:490 Can't find image applets/SetupWallpaper/wallpaper/midnight.png 20100222 19:32:51.091 ERROR squeezeplay.ui.draw - jive_tile_load_tiles:490 Can't find image applets/SetupWallpaper/wallpaper/midnight.png 20100222 19:32:52.452 ERROR squeezeplay.ui.draw - jive_tile_load_tiles:490 Can't find image applets/SetupWallpaper/wallpaper/midnight.png Additional info, the settings file that Mike attached for SetupWallpaper is in a format that hasn't been used for about (I'm guessing) a year's time. I'm going to look into a fix in SetupWallpaper to not try to draw a non-existent file as the background wallpaper, but that will only be a band-aid I think to whatever is causing the lower level drawing error.
here's the offending bit of code: elseif wallpaper then -- try firmware wallpaper srf = Tile:loadImage(firmwarePrefix .. wallpaper) end if srf ~= nil then Framework:setBackground(srf) end I believe srf should be nil in the case of a bad path to a wallpaper file, and for some reason it is not. Still investigating, but Michael's checkin r8476 may have exposed this issue...
in applet: srf = Tile:loadImage(firmwarePrefix .. wallpaper) log:warn(srf) in log: 20100222 20:18:58.317 ERROR squeezeplay.ui.draw - jive_tile_load_tiles:490 Can't find image applets/SetupWallpaper/wallpaper/midnight.png 20100222 20:18:58.317 WARN applet.SetupWallpaper - SetupWallpaperApplet.lua:398 userdata: 0x16e2e014 srf should be nil for this file, as it does not exist. I'm pretty sure this would cause problems anywhere Tile:loadImage() is pointing to a bad path, so it should probably be fixed at the C level. I may put in some defensive code in SetupWallpaperApplet as well, but I think a C fix is necessary here.
In trying to fix this in SetupWallpaper, I'm trying to put in a check for an existing file path. On desktop, the only success I've had is by coding the relative path for the file like this: filepath = '../share/jive/' .. wallpaper which is probably wrong on the device, and probably wrong for the case when it's looking for a stored image from ImageViewer. there are three scenarios that need to work: 1. an old deprecated settings style file path, as in Mike's non-working settings e.g., "midnight.png" 2. a current settings style for a default wallpaper e.g, "applets/SetupWallpaper/wallpaper/fab4_harmony.png" 3. a path to a saved image from ImageViewer e.g., "???" I have not worked out logic that will work for all three of these. Michael, if you have any thoughts on this, please share. Otherwise I think the only fix is to properly return nil from Tile:loadImage() when the file is not present, which is probably necessary anyway. this patch I was testing with will work for #2 above, and does avert the horrible screen drawing issue, but for #3 scenario will probably result in not finding the image correctly. === SetupWallpaperApplet.lua ================================================================== --- SetupWallpaperApplet.lua (revision 38726) +++ SetupWallpaperApplet.lua (local) @@ -389,12 +389,21 @@ elseif wallpaper and string.match(wallpaper, "http://(.*)") then -- saved remote image for this player srf = Tile:loadImage(downloadPrefix .. playerId:gsub(":", "-")) - elseif wallpaper and string.match(wallpaper, "/") then - -- saved image from imageviewer - srf = Tile:loadImage(wallpaper) elseif wallpaper then - -- try firmware wallpaper - srf = Tile:loadImage(firmwarePrefix .. wallpaper) + local filepath + if string.match(wallpaper, "/") then + filepath = '../share/jive/' .. wallpaper + else + filepath = firmwarePrefix .. wallpaper + end + -- does filepath exist? + if lfs.attributes(filepath, "mode") == 'file' then + log:warn('found: ', filepath) + srf = Tile:loadImage(filepath) + else + log:warn('not found: ', filepath) + srf = nil + end end if srf ~= nil then Framework:setBackground(srf)
Ben I've reverted to 8524 which is working fine for me. I think I'd gone back from 8540, so somewhere in those 16 checkins is the problem.
Ben, Yes, the code does not return NULL if no image can be loaded for a tile. I guess it should.
== Auto-comment from SVN commit #8548 to the repo by ayoung == == https://svn.slimdevices.com/?view=revision&revision=8548 == bug 15753: Tile:loadImage() should return nil when the file path is non readable Return NULL if none of the images for a JiveTile can be found. Does not test that they are actually loadable.
Ben, does this change work for you? Alan.
== Auto-comment from SVN commit #8552 to the repo by mherger == == https://svn.slimdevices.com/?view=revision&revision=8552 == Bug: 15753 Description: use System:findFile() to expand our partial file paths into valid absolute paths. Ben - this should be working with all three of your scenarios. I tested setting them manually in the SetupWallpaper.lua settings file.
Ben, do you think that this was also the issue on your controller?
Yes, I do think that the issue I saw on Controller was the same problem. I've tested the changes by both Alan and Michael and both are working as desired. Thanks to both of you for the fixes.
This bug has been marked fixed in a released version of Squeezebox Server or the accompanying firmware or mysqueezebox.com release. If you are still seeing this issue, please let us know!
