Bugzilla – Bug 15723
wrong Icons showing up for my Apps and Apps gallery and more
Last modified: 2012-11-22 19:17:04 UTC
while playing from an SD card I sometimes get the wrong icons for menu items. My Apps and App Gallery. For App Gallery I have seen the staff picks icon and have also seen album art instead of the icon. For My Apps I get the internet radio local icon. For internet radio local I have had blank album art and internet radio music the local radio icon internet radio talk has music, sports has talk, world has sports, At another time I will get them mixed up in a different way Select a Pandora station or otherwise switch to MSB.com and the icons correct themselves. fw 8504
Yep, seen this too: TinySBS will sometimes mess up built in icons. I've never seen this happen with the embedded branch on a PC/Linux.
Reading the report again I can say that I see the exact same two wrong icons for App Gallery and My Apps. Seems to be consistant across devices.

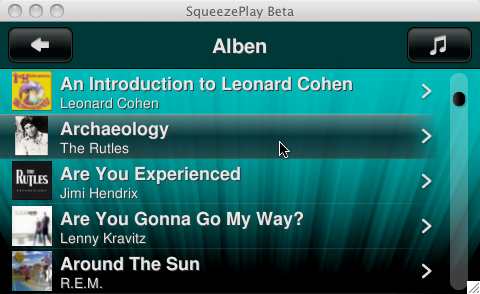

Created attachment 6569 [details] album artwork mixed up I think tinysbs is mixing up the queue: if several icons need to be rendered and get into a queue, the seem to get shifted around, being attributed to the next or previous item etc.
Created attachment 6570 [details] register plugin icons in noweb mode the app icons probably fail due to the fact that the plugins icons never get registered in noweb mode

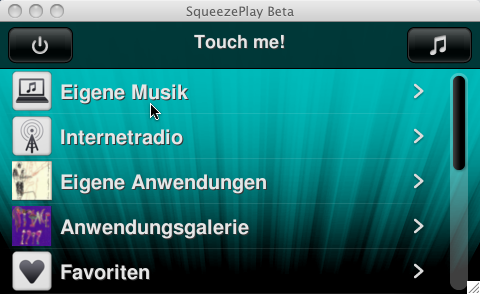

Created attachment 6571 [details] app icons using 24 Nights (Clapton) and 1999 (Prince) covers one more experience re. my messed queue theory: - SP connected to some server - triggered wipe/rescan on Touch - on SP went to My Music/Switch Source/Touch -> got connected to SB Touch while it was still scanning - entered Albums: no cover art displayed - went to Home: apps items show the two aforementioned covers -> 1999 and 24 Nights very likely are the alphabetically first albums in my list -> it looks as if the first to be shipped icon is being used for the first item actually on screen: albums view put 1999/24nights top in the queue, but when they eventually were ready to be displayed, the first two items to show a server provided icon were the two apps menu items
== Auto-comment from SVN commit #30265 to the slim repo by mherger == == https://svn.slimdevices.com/slim?view=revision&revision=30265 == Bug: 15723 Description: register plugin icons in noweb mode
Andy - with that patch applied, and not trying to display any artwork before the scan has finished all seems fine. Just don't request artwork before the artwork scan is done...
IMHO this is not a pure server side issue (if at all!), but rather SP. Maybe related to Alan's recent caching changes. After I had seen the issue in the album list again, I cleanly unplugged drives, restarted fab4, and tried again. This time I scrolled down slowly. The artwork which was wrong before the start was now ok. But as soon as I scrolled fast enough that some items got off the screen before they actually were displayed, things got confused. The very first item I made scroll off the screen before it had its icon shown stayed empty, the next item got its artwork instead. And when scrolling back, the previously empty icon was replaced with some (guess not so) random other artwork. Also: if I restart fab4 while it's connected to the embedded server, after the start it would show the same (wrong) icons as initially reported for the apps menu items again. As embedded SBS takes some time to start up it obviously times out waiting for those icons, replacing them with something else (same behaviour as when the plugin didn't publish those icons)
== Auto-comment from SVN commit #30318 to the slim repo by agrundman == == https://svn.slimdevices.com/slim?view=revision&revision=30318 == Fixed bug 15723, don't allow async artwork resize requests to get out of order
fw 8627 I am looking at now playing Santana Taboo with a Mediafly Icon as album art. Also the home menu App gallery icon has the Santana album art. This is with the SD card installed and TinySC running.
*** Bug 15869 has been marked as a duplicate of this bug. ***
Okay you are *looking at it* but how did you get to that state? Are you working with a local server or with mySB.com? Are you playing local music or music from a service? Thanks for additional info!
I cannot reproduce this and I added an automated test that should show if this is still happening, and that works fine. In order to get anywhere we need a log with artwork and network.http set to debug. On TinySC you will have to modify the init script to enable this logging. In /etc/init.d/squeezecenter, change: nice -n 5 $BASE/slimserver.pl --charset utf8 --noweb --notranscoding --nosb1slimp3sync --nostatistics --noinfolog --nodebuglog --logfile syslog & to nice -n 5 $BASE/slimserver.pl --charset utf8 --noweb --notranscoding --nosb1slimp3sync --nostatistics --logfile syslog --debug artwork,network.http & There will be a lot of log output, so as soon as you reproduce the problem, stop TinySC and get the log file.

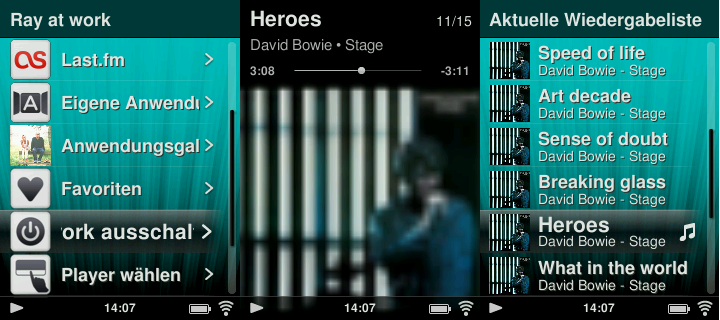

Created attachment 6659 [details] wrong App icons, blurry NP screen version Just saw this again. I still think this is related to some stress load situation: started TinySBS on Touch, and while it was doing its initial scan I connected a receiver using the Controller to it. The NP version first didn't show up, only when I went to the NP playlist and back it showed, but very blurry. It looks as if the playlist icon had been used and scaled up. The icon used on the App Gallery item is an album Random Play would have played in that moment (the one before David Bowie). On the Touch itself everything is ok: App icons, and the NP version is crisp and clear. fab4 firmware v7.5.0 r8652
We need to get a log file of this happening. If we can't get a solid fix before the 7.5.0 release, I am okay with releasing with this bug, given that it's difficult to reproduce.
Ryan if you see this again could you show me so I can be sure of my judgment about its severity? Thanks!
Chris - see the attached images.
Chris - Ever since I added the code modification to log the event details when it happens, I have not been able to recreate this again. I have been trying so I could get a log to send.
Created attachment 6695 [details] log file saved shortly after Blank icon event I hope this can help
Did you have artwork debugging on? I don't see any artwork log entries in that log file.
Blank Icons Logitech Touch. 7.6.0 r9458 When running Squeezebox Server on a 32GB SD card the "app" icons in the main menu are sometimes blank (appear black): CBC and PODCASTS. Clicking on them navigates to the correct page These icons always display correctly when the Touch is connected to mysqueezebox.com
(In reply to comment #21) > Blank Icons > > Logitech Touch. 7.6.0 r9458 > > When running Squeezebox Server on a 32GB SD card the "app" icons in the main > menu are sometimes blank (appear black): CBC and PODCASTS. Clicking on them > navigates to the correct page > > These icons always display correctly when the Touch is connected to > mysqueezebox.com Same issue with final 7.6.1. Missing App Gallery, Napster, Sounds and Effects icons when connected to TinySC on all players (2 x Radio, Squeezeplay and Touch itself). Icons are there when connected to Windows Squeezeserver 7.6.1.
I can confirm this is happening when using Tiny SC with 7.6.1. All App Icons are missing accept for Radio IO.
I would have preferred to open a new bug for this issue... but so be it: [11-08-24 17:15:50.4577] Slim::Web::Graphics::artworkRequest (83) Artwork request: plugins/SpotifyLogi/html/images/icon_41x41_m.png [11-08-24 17:15:50.4971] Slim::Web::Graphics::artworkRequest (123) Resize specification: 41x41_m.png [11-08-24 17:15:50.5131] Slim::Web::Graphics::artworkRequest (269) Looking for: plugins/SpotifyLogi/html/images/icon.png in skin Default [11-08-24 17:15:50.5306] Slim::Web::Graphics::artworkRequest (351) File not found, returning 404 Some change in S::W::G must have broken lookup of locally stored artwork.
== Auto-comment from SVN commit #33172 to the slim repo by mherger == == http://svn.slimdevices.com/slim?view=revision&revision=33172 == Fixed Bug: 15723 Description: we need to push the plugins' HTML folder on TT's INCLUDE_PATH even in noweb mode. Otherwise the plugin icons can't be found.
When running Squeezebox Server on a 32GB SD card the CBC and PODCASTS "app" icons in the main menu are sometimes blank (appear black). Clicking on them navigates to the correct page. Cycling power for a reboot restores icons. These icons always display correctly when the Touch is connected to mysqueezebox.com 7.7.2
