Bug 12648 – Selection menu bar (option 1) not top aligned properly against titlebar

Bug 12648 - Selection menu bar (option 1) not top aligned properly against titlebar

Summary:

Selection menu bar (option 1) not top aligned properly against titlebar

Status:	RESOLVED FIXED

Product:	SB Radio
Classification:	Unclassified
Component:	Menus
Version:	Include FW version in comment
Platform:	All Windows Vista

Importance:	-- normal (vote)
Target Milestone:	MPQ
Assigned To:	ndijulio

URL:
Keywords:

Depends on:
Blocks:
	Show dependency tree / graph

Reported:	2009-07-01 18:59 UTC by ndijulio
Modified:	2010-05-27 14:45 UTC (History)
CC List:	1 user (show)

See Also:
Category:	---

Attachments
top item selected with fixed padding (48.51 KB, image/png) 2009-07-07 17:40 UTC, Ben Klaas	Details
bottom item selected with status bar height of 26px (48.34 KB, image/png) 2009-07-07 17:40 UTC, Ben Klaas	Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.

Description ndijulio 2009-07-01 18:59:30 UTC

When the menu bar is all the way at the top a 1 px horizontal line can be seen of wallpaper. Leads me to believe that the asset position is down off the titlebar bottom edge by a pixel:(

Comment 1 Chris Owens 2009-07-07 10:15:17 UTC

This bug has been identified as one that may not be required for MPQ since it now seems clear that MPQ and MP firmwares will be different.  Please comment if you disagree with this assessment.  Thanks!

Comment 2 ndijulio 2009-07-07 10:36:22 UTC

This type of low level alignment really should be fixed for MPQ, however, I defer to the engineering team and QA.

Comment 3 Ben Klaas 2009-07-07 17:39:43 UTC

I've fixed this, but now the bottom item seems to not be flush against the status bar. If I adjust the status bar to 26px from 24 everything seems good. Is this okay?

Comment 4 Ben Klaas 2009-07-07 17:40:20 UTC

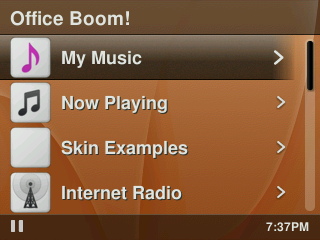

Created attachment 5420 [details]
top item selected with fixed padding

Comment 5 Ben Klaas 2009-07-07 17:40:52 UTC

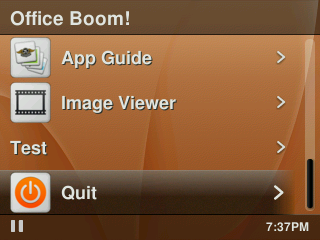

Created attachment 5421 [details]
bottom item selected with status bar height of 26px

Comment 6 ndijulio 2009-07-07 18:05:10 UTC

Menu stack-up:

Titlebar -35px

TB shadow -1px

Selection menu options -45px (x4)

Toolbar highlight -1px

Toolbar (status) -23px
.........................

35+1+180+1+23 = 240px

Comment 7 Ben Klaas 2009-07-08 07:18:58 UTC

fully fixed, r6427

Comment 8 Chris Owens 2010-05-27 14:45:43 UTC

These bugs have all been marked resolved and belong to a component which is being removed.  Therefore they have been moved to the most applicable of the new components.
