Bug 12456 - Implement audio crossover
: Implement audio crossover
Status: CLOSED FIXED
Product: SB Radio
Classification: Unclassified
Component: Audio
: Include FW version in comment
: PC Windows XP
: P1 normal (vote)
: CAT
Assigned To: Richard Titmuss
:
Depends on: 12272
Blocks:
  Show dependency tree / graph

Reported: 2009-06-18 16:29 UTC by Chris Owens
Modified: 2009-10-06 09:22 UTC (History)
3 users (show)

See Also:
Category: ---

Attachments
DAC page 1 write gets borked by the headphone detect transaction (144.18 KB, image/jpeg)
2009-07-08 20:05 UTC, Caleb Crome 		Details
amixer sset "Audio Effects Filter N0 Coefficient" 4660,22136 (138.07 KB, image/jpeg)
2009-07-08 20:21 UTC, Caleb Crome 		Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.
Description Chris Owens 2009-06-18 16:29:57 UTC
for CAT testing
Comment 1 Caleb Crome 2009-06-18 17:28:35 UTC
Sending to richard to implement the stub routine.
Comment 2 Richard Titmuss 2009-06-23 05:53:59 UTC
Stub implemented in: https://svn.slimdevices.com/repos/player/squeezeos/7.4/trunk/squeezeos_dsp

See the README for instructions on developing/testing on the desktop.

Also in fab4 branch r6120 the dsp plugin is built for the baby firmware, and just disabled in /etc/asound.conf. The demo plugin mutes the right channel, and is useful for testing the channel swap.
Comment 3 Caleb Crome 2009-06-28 11:17:07 UTC
Richard, I created a .c file that contains some filter coefficients, in https://svn.slimdevices.com/repos/player/trunk/hardware/babyboom/dsp/aic3104_aic_settings.c.

I don't know how to integrate these settings into the DSP driver.

For now, we should mix to mono in software, and use these aic3104_aic_settings.c to do the crossover in the DAC.

Will you either integrate the above file into the aic driver, or point me in the right direction.

Thanks
  -Caleb
Comment 4 Caleb Crome 2009-06-28 17:32:52 UTC
Richard, in https://svn.slimdevices.com/repos/player/squeezeos/7.4/trunk/squeezeos_dsp, where is the most significant bit in the 32-bit word?

For starters, I'll use the omx library, which needs to process in 16-bits.

-Caleb
Comment 5 Richard Titmuss 2009-06-30 02:41:43 UTC
I'm about to check in a patch that exposes the audio effect registers to userspace. amixer is silly, and i can't work out how to enter -ive numbers, so you'll have to but the MSB-LSB values in.

This should be the same as your C code, but the right channel is all screwed up (and my right ear now too!):

amixer sset "Audio Effects Filter N0 Coefficient" 516,40475
amixer sset "Audio Effects Filter N1 Coefficient" 516,25061
amixer sset "Audio Effects Filter N2 Coefficient" 65020,25061
amixer sset "Audio Effects Filter N3 Coefficient" 32767,32767
amixer sset "Audio Effects Filter N4 Coefficient" 0,0
amixer sset "Audio Effects Filter N5 Coefficient" 0,0

amixer set "Audio Effects Filter D1 Coefficient" 24546,24546
amixer set "Audio Effects Filter D2 Coefficient" 47149,47149
amixer set "Audio Effects Filter D4 Coefficient" 0,0
amixer set "Audio Effects Filter D5 Coefficient" 0,0

amixer sset "Audio Codec Digital Filter Control" 10

BTW you can see (a cache) of the register settings in: cat /sys/devices/platform/baby-aic3104.0/aic3104-codec/codec_reg

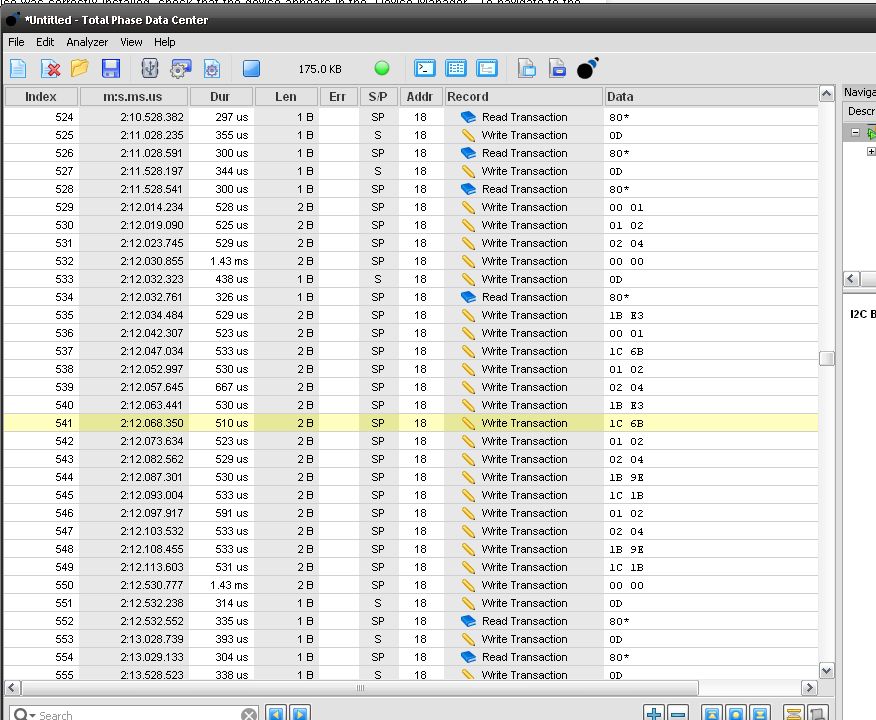

Comment 6 Caleb Crome 2009-07-08 20:05:34 UTC
Created attachment 5434 [details]
DAC page 1 write gets borked by the headphone detect transaction
Comment 7 Caleb Crome 2009-07-08 20:19:09 UTC
The DAC write gets borked by the headphone detect transaction.

The command I executed was:
# amixer sset "Audio Effects Filter N0 Coefficient" 516,40475

(which is 0x204,0x9E1B), which should go into registers 1/1, 1/2, 1/1B, 1/1C

xaction 529 changes to Page 1.

530 & 531 write registers 1/1 and 1/2 with 0x02 and 0x04.  That's right.

Then 532 changes back to page 0, 533 & 534 check headphone status.
Then 535 writes E3 into 1B.  That's not right.  It should be 9E.

Then 536 gets around to changing back to page 1.
Then 537 writes 6B into 1C, but it should really be writing 1B, not 6B.

Then 538 *rewrites* register 1/1, 539 rewrites 1/2, and so on.

There is some seriously wacky business going on.

Back to you Richard for some analysis.

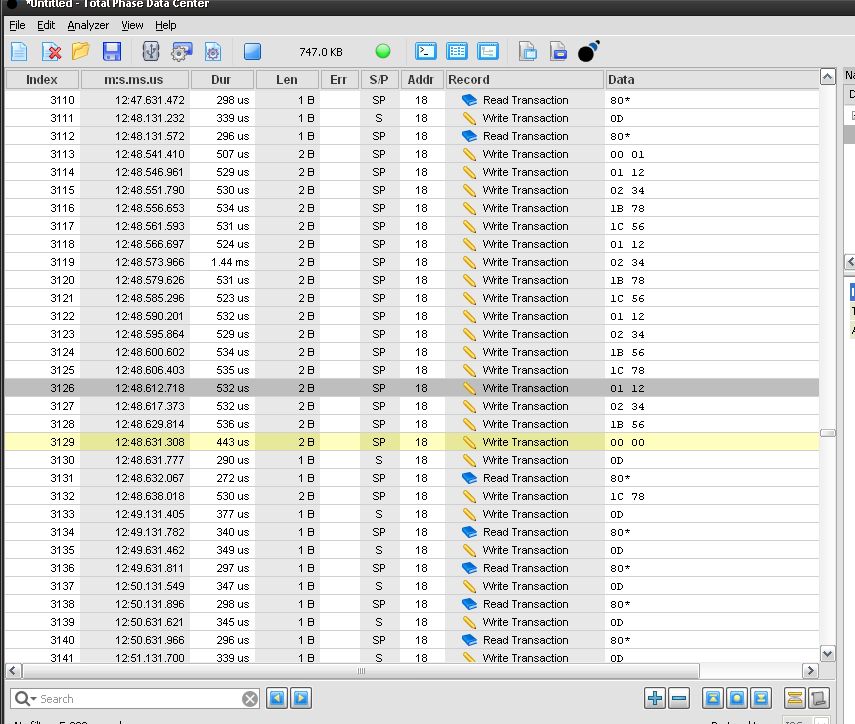

Comment 8 Caleb Crome 2009-07-08 20:21:15 UTC
Created attachment 5435 [details]
amixer sset "Audio Effects Filter N0 Coefficient" 4660,22136

amixer sset "Audio Effects Filter N0 Coefficient" 4660,22136
causes this transaction.  Again hp detect borks the transaction, but it was none too correct even without the hp detect.
Comment 9 Caleb Crome 2009-07-09 09:33:07 UTC
Checked in revision 6232.  The file aic3104_aic_settings.sh contains the shell commands to start the crossover.

To make things easy, here's the result:

amixer sset "Audio Codec Digital Filter Control" 0
amixer sset "Audio Effects Filter N0 Coefficient" 22555,65072 # 581b,fe30
amixer sset "Audio Effects Filter N1 Coefficient" 42981,65072 # a7e5,fe30
amixer sset "Audio Effects Filter N2 Coefficient" 22555,65072 # 581b,fe30
amixer sset "Audio Effects Filter N3 Coefficient" 32767,32767 # 7fff,7fff
amixer sset "Audio Effects Filter N4 Coefficient" 0,0 # 0000,0000
amixer sset "Audio Effects Filter N5 Coefficient" 0,0 # 0000,0000
amixer sset "Audio Effects Filter D1 Coefficient" 24546,24546 # 5fe2,5fe2
amixer sset "Audio Effects Filter D2 Coefficient" 47149,47149 # b82d,b82d
amixer sset "Audio Effects Filter D4 Coefficient" 0,0 # 0000,0000
amixer sset "Audio Effects Filter D5 Coefficient" 0,0 # 0000,0000
amixer sset "Audio Codec Digital Filter Control" 10

-Caleb
Comment 10 Wadzinski Tom 2009-07-09 15:33:42 UTC
Commented out version committed - r6484

Notes for richard:
log with extra debug lines as each command is called.
