Bugzilla – Bug 12402
Baby/Controller: bring slider styles to spec
Last modified: 2011-01-14 09:11:26 UTC
We've implemented a (rather nice) adjustable scroll bar on the "brightness" screen. We should also add this template to bass, treble, and line in level settings screens (they currently use the green progress-meter style). CC-ing noah in case assets are needed.
Also applies to: Player Brightness - > Min. Brightness (Auto) and Player Brightness - > Sens. Brightness (Auto)
Another one: "Effects Volume." we're using a partially-correct solution for this one currently. Changed the description of the bug b/c there seem to be several cases like this, I will add more if/when I find them
All baby screens with slider look like brightness, so movingt to 8.0 for confirmation on fab4.

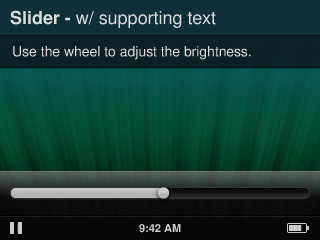

Created attachment 5780 [details] Ref artwork - QVGAskin slider (remote)

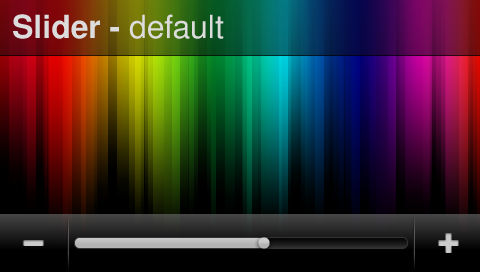

Created attachment 5781 [details] Ref artwork - slider (10ft remote)

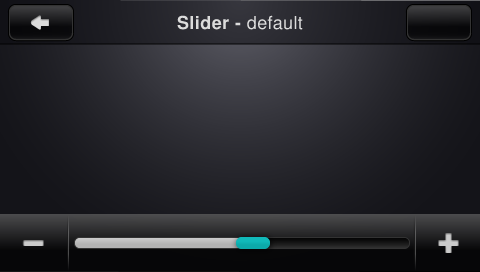

Created attachment 5782 [details] Ref artwork - slider (touch) Please note that the current implementation on device is not accurate. Due to the 'dead' zone at the bottom of the screen the entire bar was extended. 1. Need to extend bar ht - 58px 2. Need to add vert. divider lines 3. Fix asset issues for slider (left shadow tiling) ... 4. Implement numeric feedback (later - pending direction/location) -ex. 1-100 5. If we need additional assets for the L/R buttons let me know. The default should be minus "-" and plus "+"
going back to 7.4 since we aren't matching the reference...
FWIW the "dot" was dropped from 7.4 release because of engineering restriction. If the dot does not make the first release that is perfectly acceptable. Dot "gray" - means can seek given widget Dot "teal" - means can seek given widget using touch This approach is similar to the song progress bar treatment.
Run out of time for 7.4

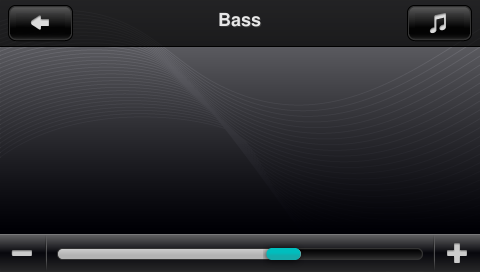

Created attachment 6297 [details] screenshot of new slider style in touch Noah, this is not as high as you have specified in the above attachment, but the background image I'm using is for the touch toolbar and it is a fixed height asset (that is, one image and not tiled). Do you want me to leave it at this height? If not, what asset(s) should I use to deliver this to spec?
Created attachment 6298 [details] Asset - toolbar for lrg skin slider (480 x 58)
The toolbar was inc. in ht for the defective pixel band at the bottom that Tom identified. Both the touch 3/10ft skins should use the same 56px by 480px toolbar. Assets are vertically centered. The net effect is that the actual assets which are touched/manipulated have been buffered (above 20px) to work around the "dead" pixels.
== Auto-comment from SVN commit #8083 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=8083 == Bug: 12402 Description: bring sliders up to spec on brightness window by adding border between buttons and slider
== Auto-comment from SVN commit #8084 to the jive repo by bklaas == == https://svn.slimdevices.com/jive?view=revision&revision=8084 == Bug: 12402 Description: sliders to spec on Fab4 QVGA (controller and baby) not yet to spec, but improved
the remainder of this bug isn't really 7.5.0 but 7.4.x now. QVGA is not to spec but it's better than it was. Retarget the remainder of the bug.
dupe of bug 13484?
7.4.x milestone is in the past
simply never gonna happen. sliders are as good as they are going to get
