Bugzilla – Bug 11980
Controller in suspend mode drains battery longer than it should; needs to shut down at certain level
Last modified: 2009-09-08 09:27:13 UTC
A suspended controller should wake itself check its voltage and shut down if below a certain level. Based on this chart we believe controllers in suspend mode are discharging the battery too long. I'll repeat this test more aggressively waking Controllers and take notes as to what Controllers wake, or don't wake, at each interval.
Richard: the theory here is that the rounded curves that drain the battery over 6 hours until it's dead are as the CPU is suspended, can't wake but also won't turn off. This is bad for the battery. The proposed solution is that the CPU wake every couple of hours long enough to measure its battery level and do a graceful shutdown if it's below a certain level. Caleb: What voltage do you recommend? Oh, and Ross, please attach the chart. :)
Created attachment 5199 [details] the chart I failed to attach
(In reply to comment #1) > Caleb: What voltage do you recommend? Spoke with Caleb, he says 3.2 volts based on the battery spec. I've got some more testing to do.
Using a variable power supply and a volt meter I measured what I believe to be the ranges of battery level indicators on the Controller UI. Full battery icon 3.7V+ 3/4 battery icon 3.620V - 3.700V 1/2 battery icon 3.535V - 3.620V 1/4 battery icon 3.480V - 3.535V Red battery icon 3.420V - 3.480 Battery low please charge me 3.420V or less.
Also this is the wiki entry I can never seem to find when Dean is over my should asking for this information. http://wiki.slimdevices.com/index.php/SqueezeOS_Internals
Standing by to test new changes.
Fixed in r5716-r5718. The controller now wakes up every three hours, checks the battery and turns off if it is too low. Ross is making some measurements that will allow us to fine tune when we turn off. I am going to be testing this tomorrow myself, before releasing to QA.
Fluke measured voltage, jivectl 17 output (decimal base 10): 4.2 949 4.15 938 4.1 928 4.05 916 4 905 3.95 894 3.9 883 3.85 865 3.8 858 3.75 847 3.7 835 3.65 826 3.6 815 3.55 800 At this point system goes down and I can't jivectl 17 anymore.

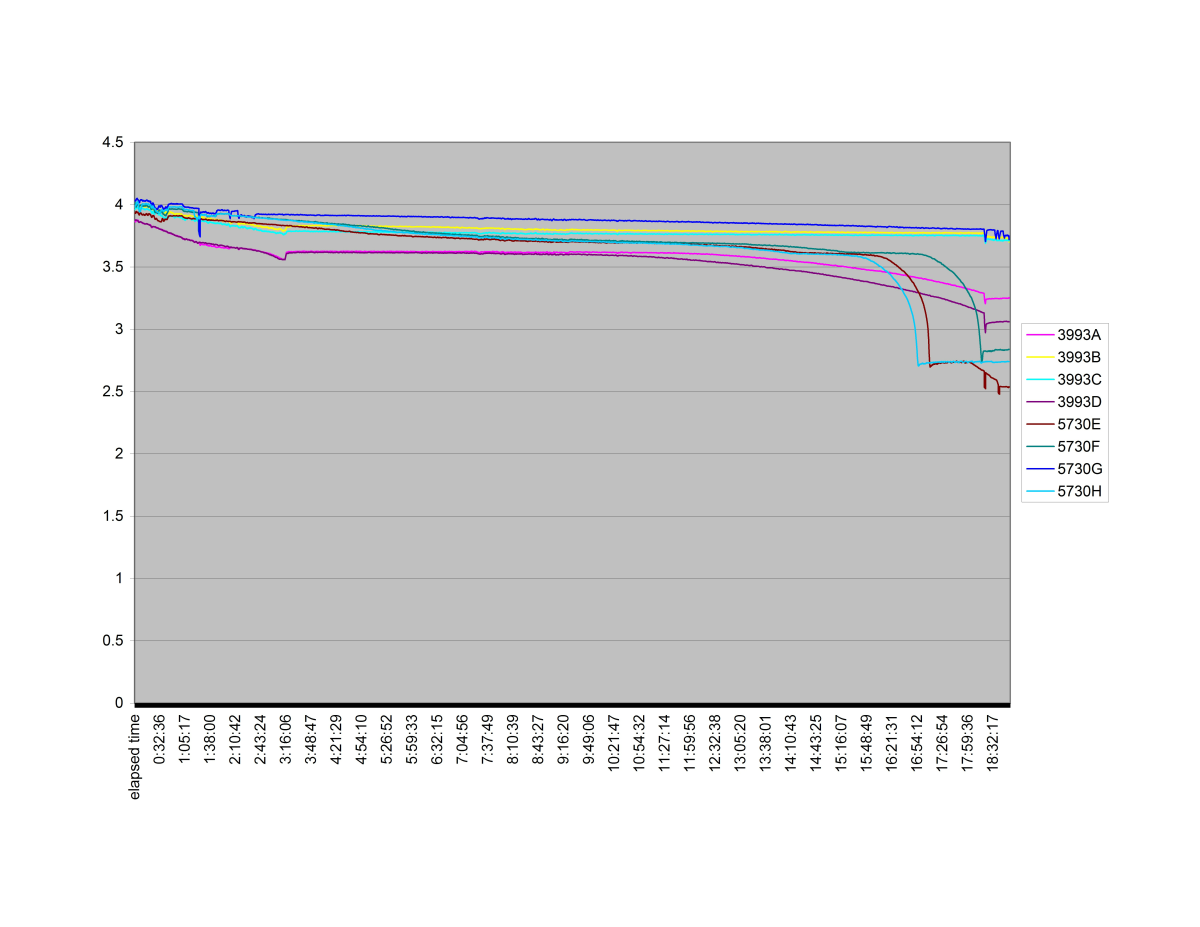

Created attachment 5216 [details] 18 hour chart of 3993 vs 5730 Something is very wrong with 5730. After about an hour I wasn't able to wake 4/4 controllers with 5730. I connected serial to one of them and pulled the batteries out of all 4 to force a reboot. The serial one (G) then didn't reproduce the problem! This morning the 3/4 controllers running 5730 without a serial connection are all below 3v and won't turn on.
Created attachment 5217 [details] serial capture Richard: Here is a serial log of the error. This is captured right from the Jive. Notice at the end, it just dies during the capture. At this point, the jive is non responsive Holding power for +10 seconds does nothing Placing the controller in the Shuck does nothing Plugging power into the Serial Dongle does nothing Removing cycle battery is the only way to bring the controller to life again. Battery is at 4.062 v BTW: Jive 7.4r5580 does not have this issue // Jive 7.3r5577 does not have this issue
Richard I have questions about the implementation of the fix for this bug. From what I understand currently you've set Controller to wake (sort of) every hour on the hour, check its battery status, and returns to suspend or shuts down based on the voltage reading. I was under the impression the screen and backlit keys should only be on for 1/4 of a second or a very brief time. What I'm seeing is every hour on the hour my Controller wakes and stays awake until it sleeps, and then goes into suspend based on the normal timers in factory test settings. I'm using r5772 and I have made changes to the factory test timers.
*** Bug 12094 has been marked as a duplicate of this bug. ***
Hopefully! fixed in 7.3 r5921.
Richard, just to clarify should that be 7.3 r5921 or 7.3 r5922?
I'm seeing some problems with r5922 that are hindering verifying this as fixed. After almost 4 hours of testing 100% of the r5922 controllers I'm testing won't wake from suspend. Lets talk next week Richard.
This bug has been fixed in the 7.3.3 release version of SqueezeCenter! If you haven't already. please download the new version from http://www.logitechsqueezebox.com/support/download-squeezecenter.html If you are still experiencing this problem, feel free to reopen the bug with your new comments and we'll have another look.

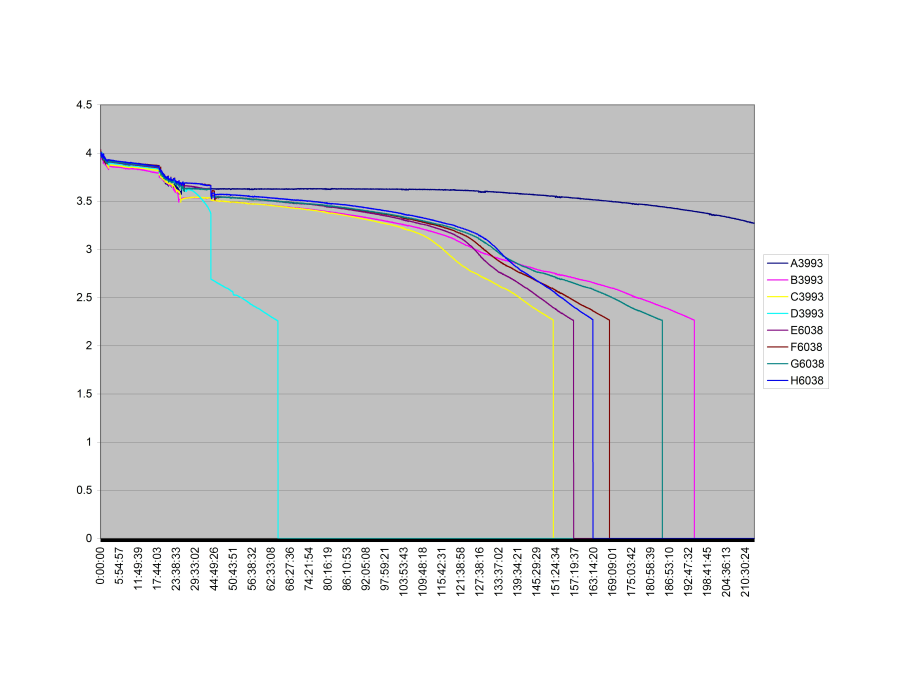

Created attachment 5349 [details] 6038 v 3993 graph after 8 days
So, is that chart good?
(In reply to comment #18) > So, is that chart good? I think this is bad, but need Caleb to confirm, he said he'll have time next week. The 6038 batteries were drained to the 2.265v shutdown after 6-7 days.
Measured the voltage at which each of these 8 Controllers under test indicate please charge me. Also measured the current when powered off and in suspend mode, hopefully this will help explain the two oddities in my graph. Thanks Caleb! controller A please charge me 3.56v powered off .68mA suspend 8.72mA controller B please charge me 3.57v powered off .73 suspend 6.41mA controller C please charge me 3.6v powered off .72mA suspend 6.56mA controller D please charge me 3.56v powered off .77 suspend 7.84mA controller E please charge me 3.56v powered off .76mA suspend 7.32mA controller F please charge me 3.6v powered off .75mA suspend 6.96mA controller G please charge me 3.58v powered off .71mA suspend 6.96mA controller H please charge me 3.58v powered off .77 mA suspend 8.81mA Should I look into the current draw in suspend/off modes of more Controllers? Some of these Controllers are MP (RMAs from James) and MPQ, some look to be older.
