Bug 11709 – new small spinny lines are two thin

Bug 11709 - new small spinny lines are two thin

Summary:

new small spinny lines are two thin

Status:	RESOLVED FIXED

Product:	SB Touch
Classification:	Unclassified
Component:	UI
Version:	unspecified
Platform:	PC Other

Importance:	-- normal (vote)
Target Milestone:	8.0.0
Assigned To:	ndijulio

URL:
Keywords:

Depends on:
Blocks:
	Show dependency tree / graph

Reported:	2009-04-08 07:37 UTC by Blackketter Dean
Modified:	2009-09-08 09:14 UTC (History)
CC List:	1 user (show)

See Also:
Category:	---

Attachments
Ref artwork - connecting widget small (41.91 KB, image/png) 2009-04-08 09:48 UTC, ndijulio	Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.

Description Blackketter Dean 2009-04-08 07:37:51 UTC

The new small spinny is has lines that need to be "chunkier" in order to be visible.  This means that we'll need a separate asset for the small version (rather than just resizing down the large one programmatically).

Essentially, the line thickness needs to be probably double what it is now, growing inwards (the icon may even need to get a little smaller overall).

Comment 1 ndijulio 2009-04-08 09:48:19 UTC

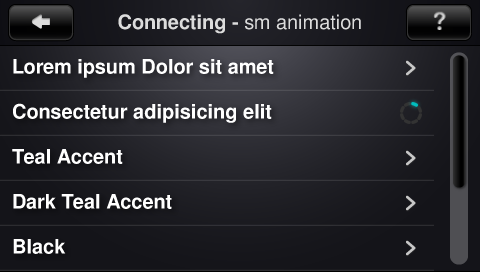

Created attachment 5074 [details]
Ref artwork - connecting widget small

Comment 2 ndijulio 2009-04-08 10:00:58 UTC

Separate asset created and updated to svn. @ rev. 5249

Comment 3 Blackketter Dean 2009-04-08 10:11:17 UTC

Thanks, looking forward to seeing this in action.

Noah: Did you agree that it might be a little big?

Comment 4 ndijulio 2009-04-08 10:24:58 UTC

I'm confused. What do you mean big?  I would agree at the previous scale the one little teal was getting lost...

Comment 5 Blackketter Dean 2009-04-08 17:07:21 UTC

I meant too big overall.  It seems a little too large visually in that space.

Comment 6 ndijulio 2009-04-08 18:07:45 UTC

We can reduce the outer diameter of the circle.  Will this resolve what you are seeing?

Comment 7 ndijulio 2009-06-25 16:37:20 UTC

Propose increasing the contrast (more white)for the non highlighted ticks to make more legible.  Difficult to read on certain skins.

Comment 8 ndijulio 2009-07-16 19:38:45 UTC

Should be fixed.  Please reopen if still a problem.
