Bug 11304 – Progress bar - gradient scaling

Bug 11304 - Progress bar - gradient scaling

Summary:

Progress bar - gradient scaling

Status:	RESOLVED FIXED

Product:	SB Touch
Classification:	Unclassified
Component:	UI
Version:	unspecified
Platform:	PC Windows Vista

Importance:	-- normal (vote)
Target Milestone:	MP
Assigned To:	ndijulio

URL:
Keywords:

Depends on:
Blocks:
	Show dependency tree / graph

Reported:	2009-03-10 10:42 UTC by ndijulio
Modified:	2009-09-08 09:23 UTC (History)
CC List:	2 users (show)

See Also:
Category:	---

Attachments
Ref artwork 1 - 5% (16.24 KB, image/png) 2009-03-10 10:42 UTC, ndijulio	Details
Ref artwork 2 - 75% (16.29 KB, image/png) 2009-03-10 10:43 UTC, ndijulio	Details
Ref artwork - 3 (no supporting text/no white progres bar line) (3.22 KB, image/jpeg) 2009-03-10 10:45 UTC, ndijulio	Details
View All Add an attachment (proposed patch, testcase, etc.)

Note You need to log in before you can comment on or make changes to this bug.

Description ndijulio 2009-03-10 10:42:10 UTC

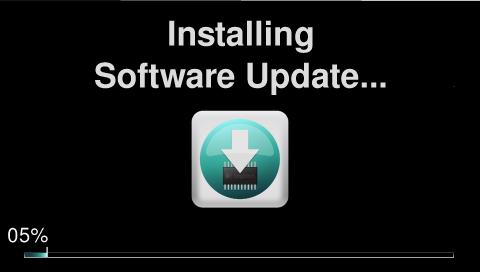

Created attachment 4911 [details]
Ref artwork 1 - 5%

The artwork for the progress bar is not correct.  The gradient is not scaling properly and the white ruled line for alert screens is too small.  Please see attached artwork for reference.

Comment 1 ndijulio 2009-03-10 10:43:06 UTC

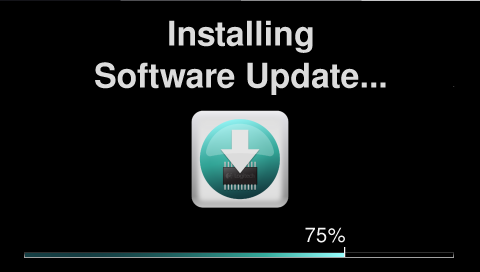

Created attachment 4912 [details]
Ref artwork 2 - 75%

Comment 2 ndijulio 2009-03-10 10:45:25 UTC

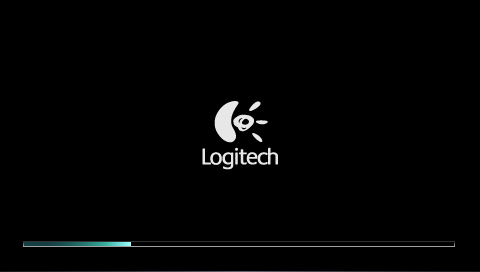

Created attachment 4913 [details]
Ref artwork - 3 (no supporting text/no white progres bar line)

Comment 3 ndijulio 2009-03-10 10:46:34 UTC

Correct size for white progress_bar_line.png = 1x10 pixels

Comment 4 Blackketter Dean 2009-03-27 09:25:23 UTC

We need this fixed for MP for the firmware update.

Comment 5 Ben Klaas 2009-03-27 13:04:00 UTC

I'm pushing this one Richard's way. I don't think we support the stretch behavior in the slider required for this to work as intended.

Comment 6 Jim McAtee 2009-03-27 16:00:53 UTC

I don't understand why the progress bar is so thin.  This has been commented on by several of the testers in the beta forum.  It looks completely out of proportion given the screen height.

Comment 7 Richard Titmuss 2009-03-30 06:39:48 UTC

We can't support the gradient scaling as it is specified at the moment. I can implement that this week, but it's not clear that the progress bar is going to stay like this after the "steering commitee UI guidelines" were sent out last week. So I only want to make this change if we are committed to the progress bar with gradient scaling, otherwise it's a waste of time. Dean?

Comment 8 Blackketter Dean 2009-03-30 16:54:10 UTC

Noah is looking at this again, given the new graphics direction from SmartDesign.

Look for a simplified graphic.

Comment 9 Blackketter Dean 2009-03-30 16:58:04 UTC

*** Bug 11543 has been marked as a duplicate of this bug. ***

Comment 10 ndijulio 2009-04-04 14:58:43 UTC

This should be closed...

Comment 11 Blackketter Dean 2009-04-04 20:35:32 UTC

Noah, you can close these yourself.
